Front Lamp Unit Bulb - Removal

BULB - PARK/TURN SIGNAL/SIDE MARKER

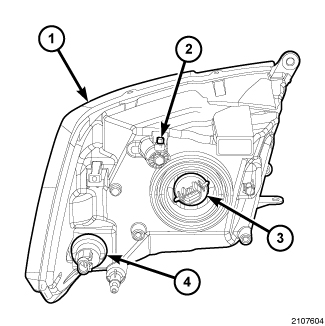

Figure 1 - Dual Headlamps



Figure 2 - Quad Headlamps
1. Remove the front lamp unit (1) from the vehicle. Front Lamp Unit - Removal
2. Firmly grasp the park/turn signal/side marker bulb socket (4) on the back of the front lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
3. Pull the socket and bulb straight out from the keyed opening in the housing.

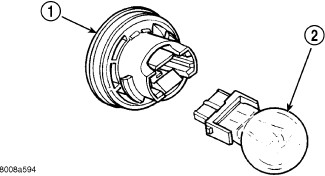

4. Pull the base of the bulb (2) straight out of the socket (1).
