Engine Timing Cover(s) - Removal






REMOVAL





1. Disconnect both battery negative cables.
2. Raise vehicle on hoist.
3. Partially drain engine coolant into container suitable for re-use Service and Repair.
4. Lower vehicle.
5. Remove radiator upper hose.

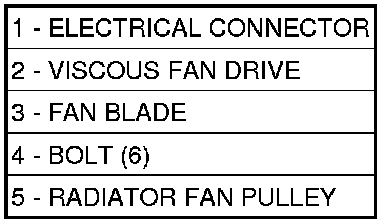

6. Remove viscous fan/drive/shroud assembly Viscous Radiator Fan Clutch - Removal
7. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal.









8. Remove the cooling fan support/hub from the front of the engine.

9. Raise the vehicle on hoist.
10. Remove power steering pumpPower Steering Pump - Removal.
11. Remove accessory drive belt tensioner.
12. Remove the crankshaft damper Vibration Damper - Removal.
13. Lower the vehicle.
14. Remove the gear cover-to-housing bolts and gently pry the cover away from the housing, taking care not to mar the gasket surfaces.
