Rear

INSTALLATION

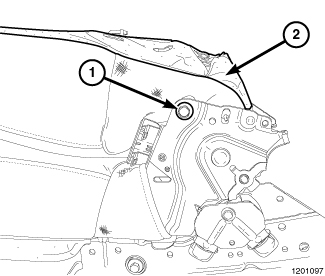

1. Position the seat back assembly (2) onto the seat latches and install the pivot bolts (1).
2. Tighten the bolts (1) to 28 Nm (21 ft. lbs.).

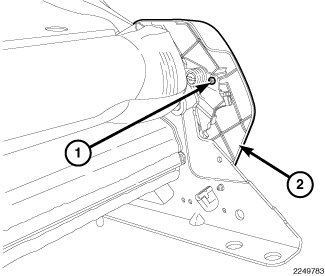

3. Install the side shields (2) and install the screws (1).
4. Install the rear seat assembly. Rear Seat - Installation
