Front

INSTALLATION





1. Install the seat back (1) onto the seat cushion assembly and install the four bolts (2).
2. Tighten the bolts (2) to 40 Nm (30 ft. lbs.).

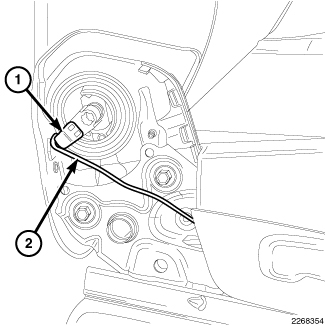

3. On manual reclining seats, install the recliner rod (2) onto the recliner lever and fully seat the clip (1).





4. Position the wire harness (1) through the suspension mat (2).
5. Secure the suspension mat (2) to the cross brace.

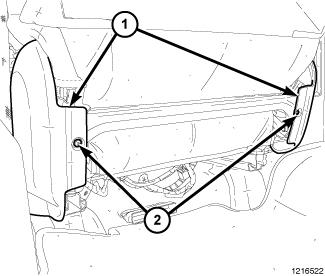

6. Install the outer side shield and seat the clips (2) fully.
7. Install the screw (1).






NOTE: Power seat bezel shown, manual seat bezel similar.

8. Connect the wire harness connectors to the power seat switch and memory seat switch, if equipped.

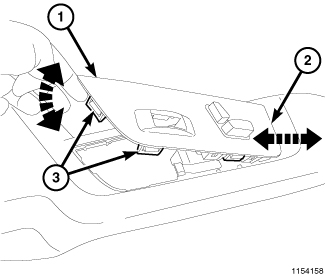

9. Position the bezel (1) back into place and secure the front tab (2).
10. Seat the remaining tabs (3) fully.





11. If equipped, connect the lumbar switch electrical connector (1).

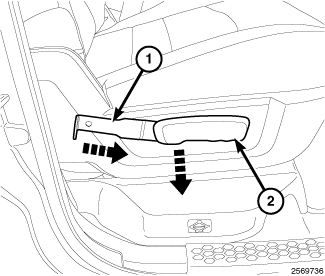

12. If equipped with manual seat, install the seat recline handle. Make sure the clip holding the handle is fully engaged.

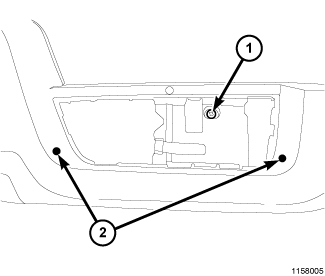

13. Install the inboard shield (2) and install the screw (1).





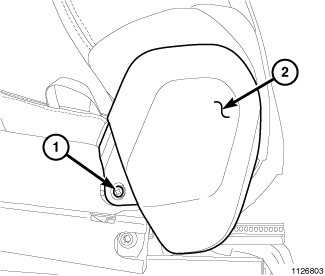

14. Install the side shield screws (2).

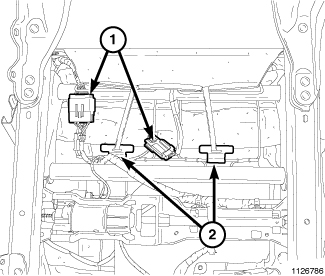

15. Secure the seat back cover straps (2).

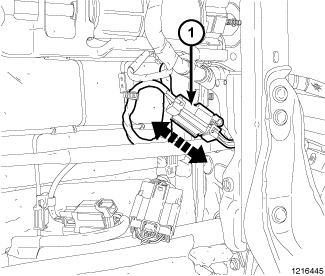

16. Connect the electrical connectors (1).
17. Install the front seat Front Seat - Installation
