Rear

ASSEMBLY

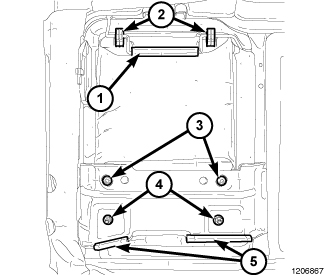

1. Position the cover (3) on to the foam (1) and install three new hog rings (2).
2. Position the foam and cover assembly over the seat back frame.





3. Secure the J-straps (1 and 5)

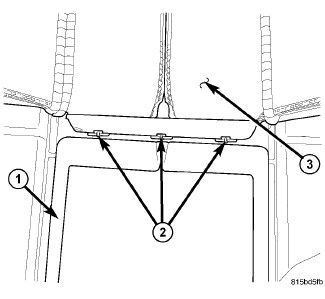

4. Position the armrest into the seat cavity and secure the upper hooks (2).
5. Seat the armrest fully into the seat cavity and install the screws (3) and nuts (4).
6. Tighten the screws and nuts to 28 Nm (21 ft. lbs.)

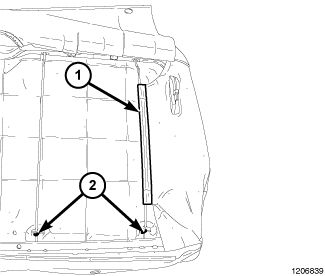

7. Secure the J-strap (1).
8. Install two new rear hog rings (2).





9. Secure the J-straps (2).





10. Install the new head restraint sleeves with slave sleeve (4) in the right position and master sleeve (3) in the left position.
11. Press the lock buttons (2) on the sleeves and insert the head restraint tubes (1) into the head restraint guide sleeves, ensuring proper forward facing orientation of the head restraint.
12. Install the seat back. Seat Back - Installation

Center Arm Rest





1. Position the foam and cover (2) over the armrest frame and secure the zipper (1).

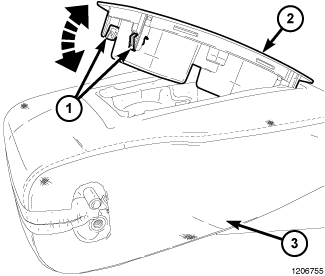

2. Position the cup holder (2) onto the armrest (3) and seat the four clips (1) fully.





3. Install the armrest assembly (1) onto the tray (3) and install the pivot brackets.
4. Install the pivot bolts and tighten to 28 Nm (21 ft. lbs.).
