Upper

REMOVAL

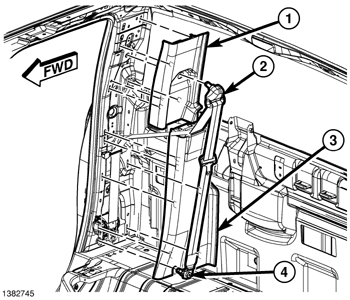

Crew Cab





1. Remove the lower C-pillar trim (2). C-Pillar Trim Panel - Removal
2. Pull the upper trim (1) off and release the retaining clips.
3. Pull the seat belt (3) through the trim and remove the trim.

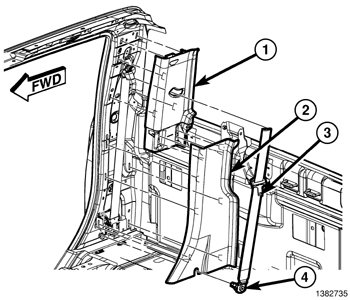

Quad Cab





1. Remove the lower C-pillar trim (3). C-Pillar Trim Panel - Removal
2. Separate the turning loop cover (2) and remove the turning loop bolt.
3. Pull the upper trim (1) off and release the retaining clips.

Mega Cab





1. Remove the lower C-pillar trim. C-Pillar Trim Panel - Removal

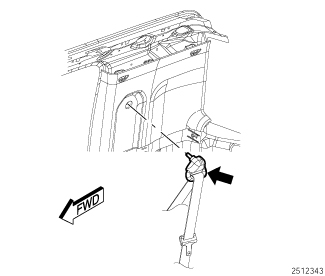

2. Separate the turning loop cover and remove the turning loop bolt. Seat Belt Turning Loop Adjuster - Removal

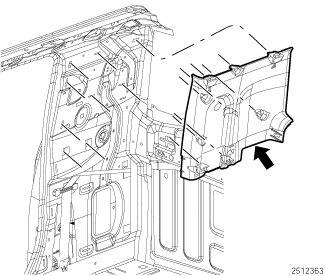

3. Pull the upper trim off and release the retaining clips.
