Lower

REMOVAL

Crew Cab





1. Remove the rear seat assembly. Rear Seat - Removal
2. Remove the seat belt anchor (4).
3. Separate the lower trim retaining clips from the pillar and the rear door scuff plate.
4. Remove the trim (2).

Quad Cab





1. Remove the rear seat assembly. Rear Seat - Removal
2. Remove the seat belt anchor (4).
3. Separate the lower trim retaining clips from the pillar and the rear door scuff plate.
4. Remove the seat belt (2) from the hole in the trim and remove the trim.

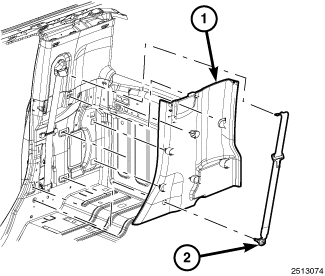

Mega Cab





1. Remove the rear seat assembly. Rear Seat - Removal
2. Remove the seat belt anchor (2).
3. Separate the lower trim retaining clips from the pillar and the rear door scuff plate.
