Upper

REMOVAL

Special Tools:






Standard Cab





1. Remove the lower B-pillar trim. B-Pillar Trim Panel - Removal

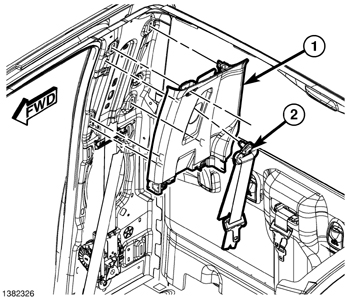

2. Separate the turning loop cover (2) and remove the turning loop bolt.
3. Pull the upper trim (1) off and release the retaining clips.

Quad Cab





1. Remove the lower B-pillar trim. B-Pillar Trim Panel - Removal

2. Using a small flat-bladed tool, carefully open the two fastener covers (2) located on the grab handle.
3. Remove the two bolts (3) that secure the grab handle to the B-pillar and remove the grab handle.

4. Separate the seat belt turning loop cover and remove the turning loop bolt.
5. Using a trim stick or equivalent, disengage the retaining clips that secure the upper trim (1) to the pillar and remove the trim panel.
6. Remove the seat belt from the trim.
