Lower

REMOVAL

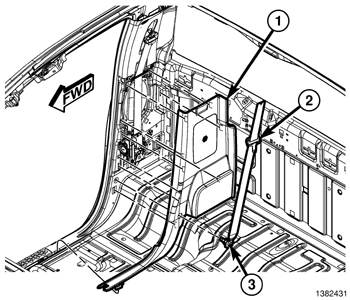

Standard Cab





1. If equipped, remove the rear storage bin. Storage Bin - Removal
2. Remove the lower seat belt anchor bolt (3).
3. Separate the forward clip.
4. Separate the remaining retaining clips and remove the lower trim (1).

QUAD CAB





1. Remove the front door cowl trim panel. Cowl Trim Panel - Removal
2. Remove the rear door scuff plate. Scuff Plate - Removal
3. Release the retaining clips and remove the trim panel(1).
