Scuff Plate - Removal
Scuff Plate - Removal
REMOVAL

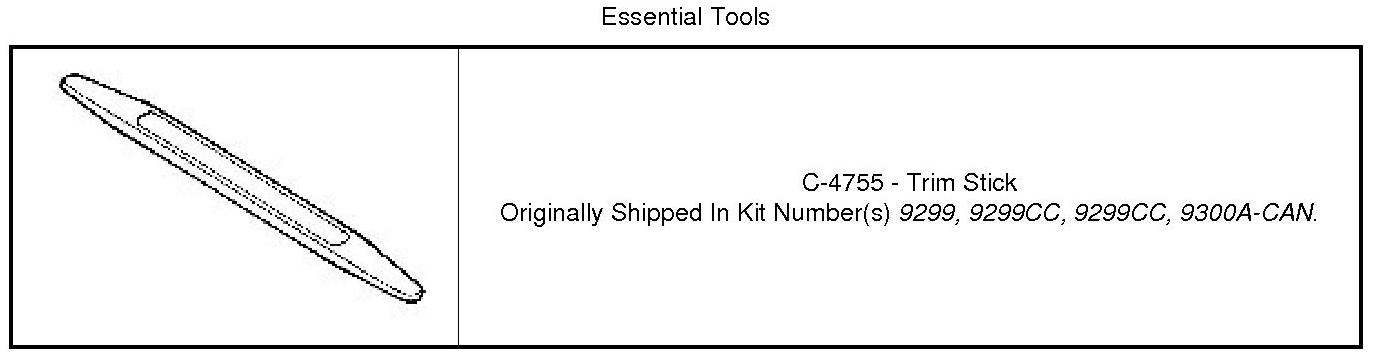

Special Tools:
1.
Using a trim stick or equivalent, disengage the retaining tabs of the sill
trim panel
(1) from the retainer clips in the rear door sill and remove the trim panel.
