Latch - Removal

REMOVAL





1. Remove the tailgate cover. Tailgate Cover - Removal
2. Using a grease pencil or equivalent, mark the actuator rod (3) at the control (2) for the latch (1) being serviced.
3. Disconnect the actuator rod from the control.

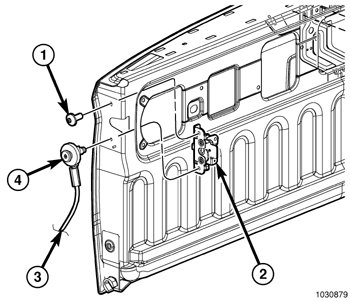

4. Remove the two bolts (1 and 4) that secure the latch (2) to the tailgate and position the tailgate check cable (6) out of the way.
5. Remove the latch from the tailgate.
