Tailgate Cover - Removal
Tailgate Cover - Removal
REMOVAL
1.
Open the
tailgate
(3).
2.

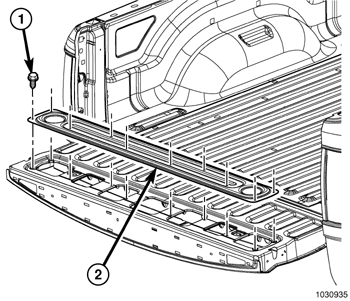

Remove the screws (1) and remove the
tailgate
liner (2), if equipped.
3.

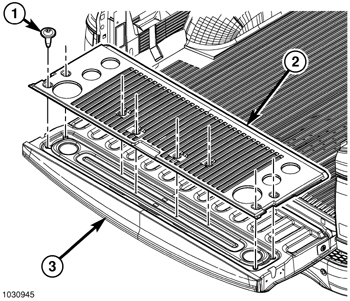

Remove the bolts (1) that secure the tailgate cover (2) to the inside of the
tailgate
and remove the cover.
