Latch Release Handle - Removal

REMOVAL





1. Open the tailgate and remove the tailgate liner, if equipped, and cover. Tailgate Cover - Installation
2. Using a grease pencil or equivalent, mark the location of the actuator rods (2) at the control.
3. Disconnect the actuator rods from the control.





4. Disconnect the backup camera electrical connector (1), if equipped.

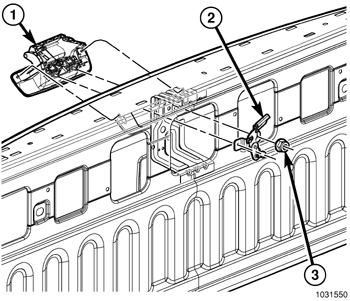

5. Remove the two nuts (3) that secure the release handle (1) and the control (2) to the tailgate.
6. Remove the control (2) and the release handle (1) from the tailgate.
