RAM 3500 Truck 2WD L6-6.7L DSL Turbo High Output
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Hood Sensor/Switch (For Alarm)
>>
Service and Repair
>>
Vehicle Theft Security Hood Ajar Switch - Removal
>>

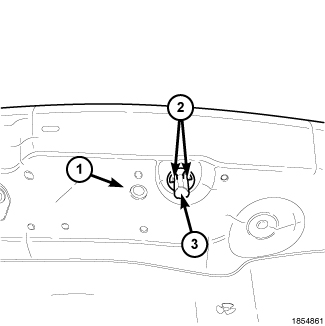

Striker
Striker
STRIKER
1.
Unlatch and open the hood.
2.
Release the three lock tabs (2) on the hood striker (3) and pull the striker away from the inner hood panel (1) to remove the striker from the vehicle.
