B1E66-15

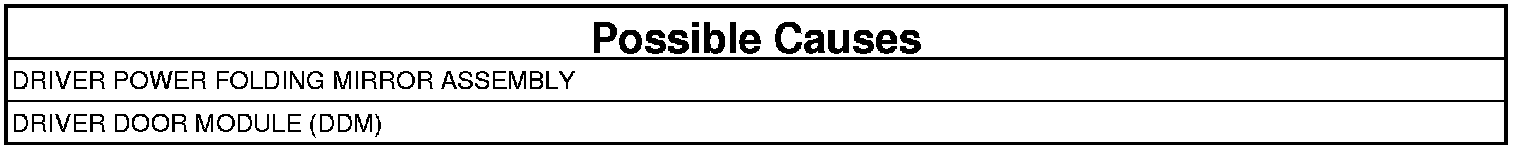

B1E66-15-DRIVER MIRROR FOLD CONTROL CIRCUIT SHORT TO BATTERY OR OPEN

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:
When one of the Mirror Fold or Unfold Driver circuits are shorted to battery voltage or the circuit is open for approximately 30 seconds.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, erase the DTCs.
3. Operate the Mirror Fold switch in both directions three times.
4. Cycle the ignition from on to off three times.
5. Turn the ignition on.
6. With the scan tool, read the active DTCs.

Does the scan tool display: B1E66-15-DRIVER MIRROR FOLD CONTROL CIRCUIT SHORT TO BATTERY OR OPEN as active?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and poor pin fit. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. INSPECT MIRROR CONNECTIONS




1. Turn the ignition off.
2. Disconnect the Driver Outside Rearview Mirror connector at the Drivers Door Module C2 harness connector.
3. Inspect the wiring and connectors between the mirror and the Drivers Door Module.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. MIRROR ASSEMBLY
1. Turn the ignition off.
2. Replace the Drivers Power Folding Mirror Assembly.
3. Turn the ignition on
4. With the scan tool, erase the DTCs.
5. Cycle the ignition from on to off three times.
6. Turn the ignition on.
7. Operate the Mirror Fold switch in both directions three times.
8. Wait 30 seconds.
9. With the scan tool, read the active DTCs.

Does the scan tool display: B1E66-15-DRIVER MIRROR FOLD CONTROL CIRCUIT SHORT TO BATTERY OR OPEN as active?

Yes

- Replace the Drivers Door Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test Complete.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
