B1BC7

B1BC7-00-DEPLOYMENT DATA RECORD FULL -

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation
When powered, the Occupant Restraint Controller (ORC) performs an internal self test. The repair of this fault condition does not involve any external circuitry and centers on verifying the integrity of the module's internal memory.
- When Monitored:
The ORC checks its internal memory for the number of recorded deployment events once at every power up, during the initialization process and after any deployment.

- Set Condition:
This Diagnostic Trouble Code (DTC) sets when the ORC detects the third airbag deployment event. Once set, this DTC is latched permanently.





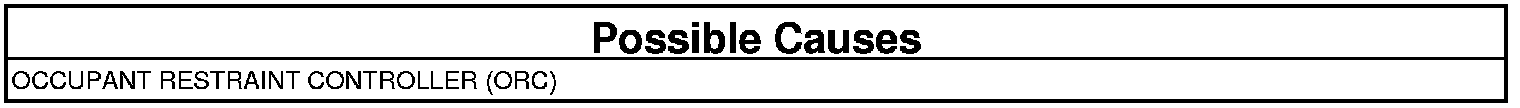

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.
VERIFY ACTIVE DTC
1. Turn the ignition ON.
2. With the scan tool, read ORC active DTCs.

Does the scan tool display an active B1BC7-00-DEPLOYMENT DATA RECORD FULL - DTC?

Yes

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
