B168F

B168F-FRONT FOG LAMP SWITCH CIRCUIT STUCK

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
When the Cluster detects a Fog Lamp Switch Stuck message.





TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Turn the Headlamps on.
3. Operate the Fog Lamp Switch several times.
4. Turn the ignition on and wait 30 seconds.
5. Using the scan tool, read DTCs.

Does the scan tool display: B168F-FRONT FOG LAMP SWITCH CIRCUIT STUCK?

Yes

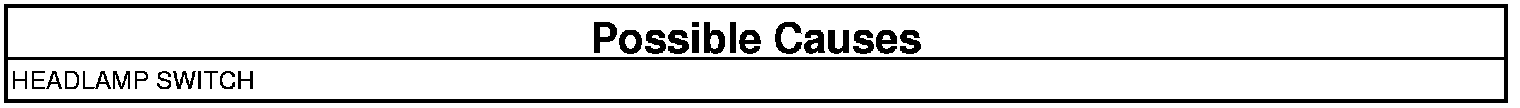

- Replace the Headlamp Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
