B127A

B127A-COMPASS PERFORMANCE

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:

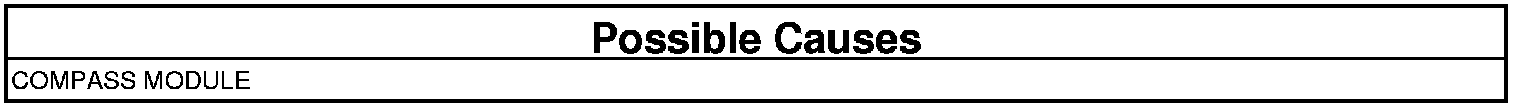

Internal Compass Module failure detected.





CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Replace the Compass Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete.
