Home >> Dodge or Ram Truck >> 2012 >> RAM 3500 Truck 2WD L6-6.7L DSL Turbo High Output >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B11DC

B11DC

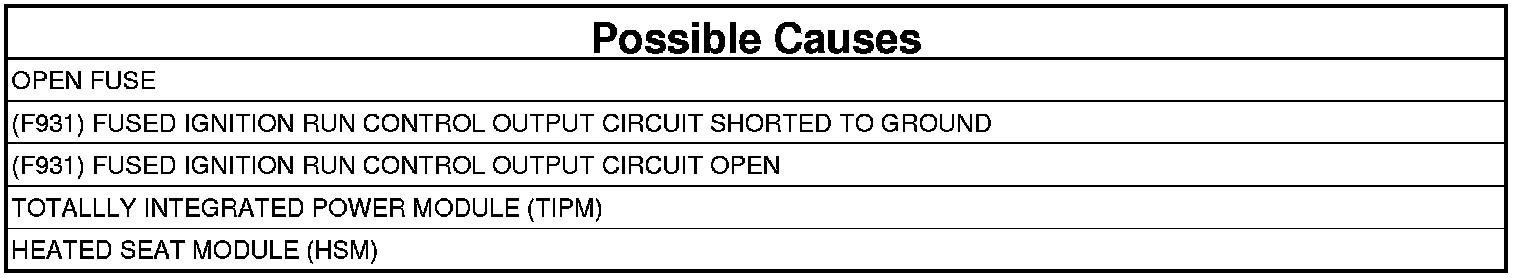

B11DC-13-REAR HEATED SEATS POWER SUPPLY - CIRCUIT OPEN





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the engine running.

- Set Condition:
The Heated Seat Module (HSM) detects no voltage on the (F931) Fused Ignition Run Control Output circuit for more than two seconds.





1. TEST FOR INTERMITTENT CONDITION

NOTE: Make sure the battery is fully charged and the charging system is operating properly before proceeding.

1. Turn the ignition on.
2. Using a scan tool, record and erase Diagnostic Trouble Codes (DTCs).
3. Turn the ignition off.
4. Start the engine and let it run.
5. Using a scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Verify seat harness is routed correctly to the HSM. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Attempt to reproduce condition by adjusting the seat.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK TIPM FUSE
1. Using a 12-volt test light connected to ground, check for power on both sides of TIPM Fuse M9.

Choose the applicable result?

No Power To Fuse

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

Fuse Open

- Go To 3

Fuse Ok

- Go To 6

3. REPLACE AND RECHECK TIPM FUSE M9
1. Turn the ignition off.
2. Install a new TIPM Fuse.
3. Turn the ignition on.
4. Using a scan tool, erase DTCs.
5. Turn the ignition off.
6. Start the engine and let it run.
7. Operate each of the Heated Seats and the HSW, if equipped.
8. Inspect TIPM Fuse.

Is the fuse open?

Yes

- Go To 4

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Verify seat harness is routed correctly. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Attempt to reproduce condition by adjusting the seat.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

4. CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT INSIDE TIPM FOR SHORT TO GROUND
1. If not done previously, turn the ignition off.
2. Remove TIPM Fuse M9.
3. Disconnect the TIPM C6 harness connector.

NOTE: Check connectors. Clean and repair as necessary.

4. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between ground and the TIPM Fuse M9 (output side) connector.

Is the resistance below 10K Ohms?

Yes

- Replace the Totally Integrated Power Module (TIPM) and Fuse M9.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 5

5. CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT FOR A SHORT TO GROUND BETWEEN TIPM AND HSM




1. Disconnect the HSM C3 harness connector.
2. Disconnect the HSM C4 harness connector, if equipped.

NOTE: Check connectors. Clean and repair as necessary.

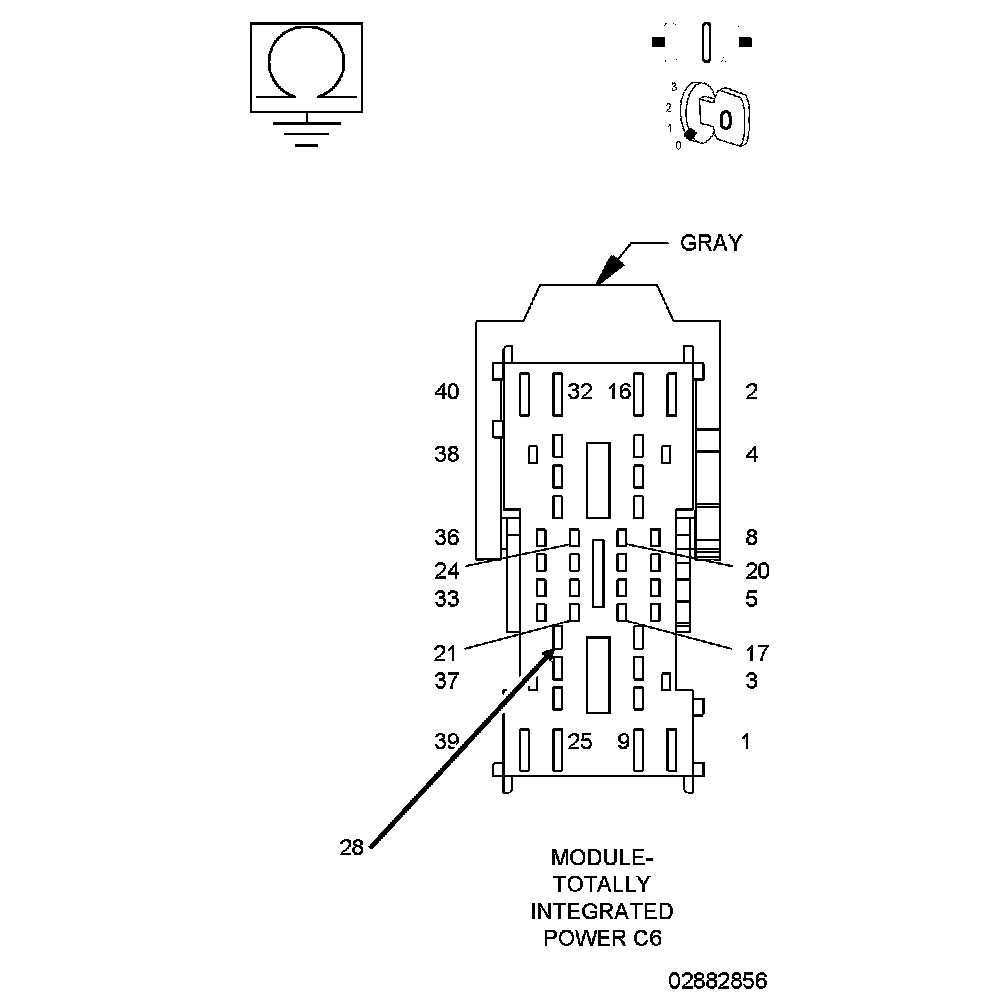

3. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between ground and the TIPM C6 harness connector.

Is the resistance below 10K Ohms?

Yes

- Repair the (F931) Fused Ignition Run Control Output circuit for a short to ground. Replace Fuse M9.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Heated Seat Module (HSM) and Fuse M9.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

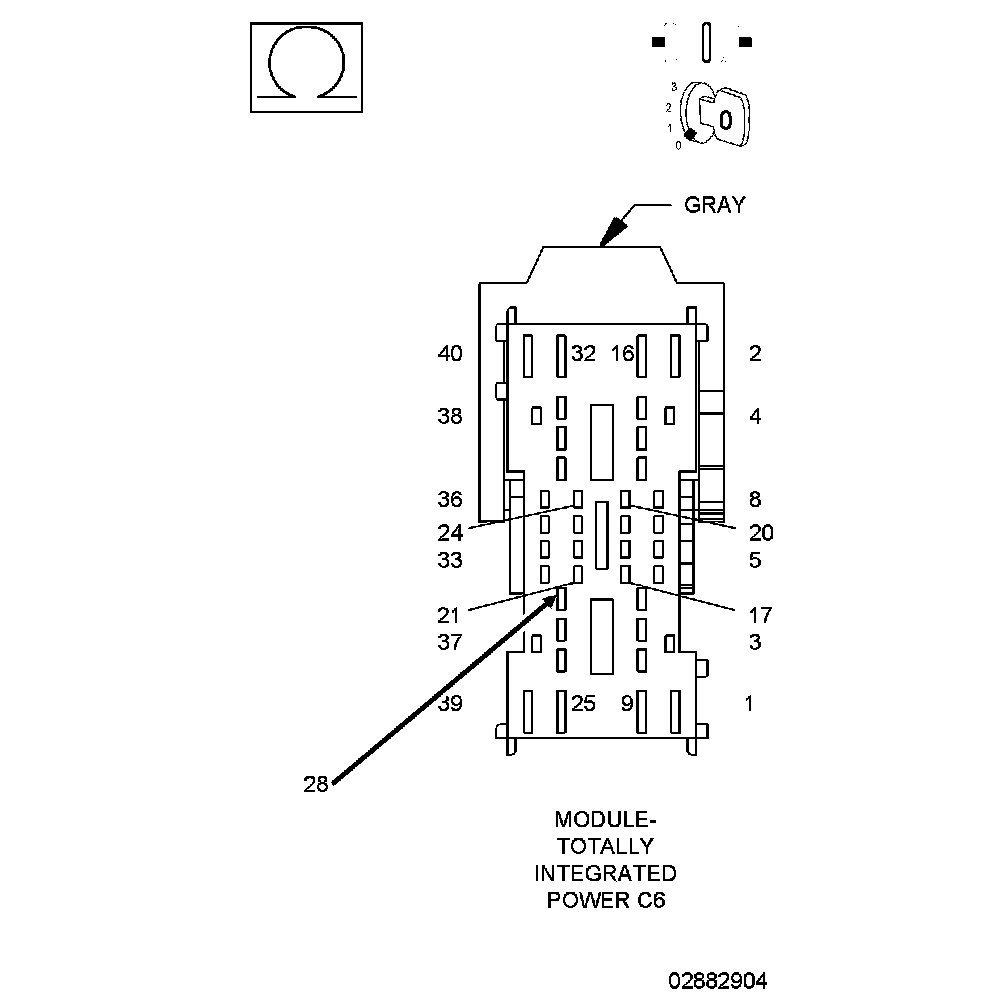

6. CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT INSIDE TIPM FOR AN OPEN





NOTE: TIPM C6 harness connector shown. Mirror image for TIPM C6 component side connector.

1. If not done previously, turn the ignition off.
2. Remove TIPM Fuse M9.

NOTE: Check connectors. Clean and repair as necessary.

3. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between the TIPM Fuse M9 (output side) connector and the TIPM C6 (component side) connector.

NOTE: The graphic shows the connector end. Measure at the component side of the TIPM.

Is the resistance below 5.0 Ohms?

Yes

- Go To 7

No

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

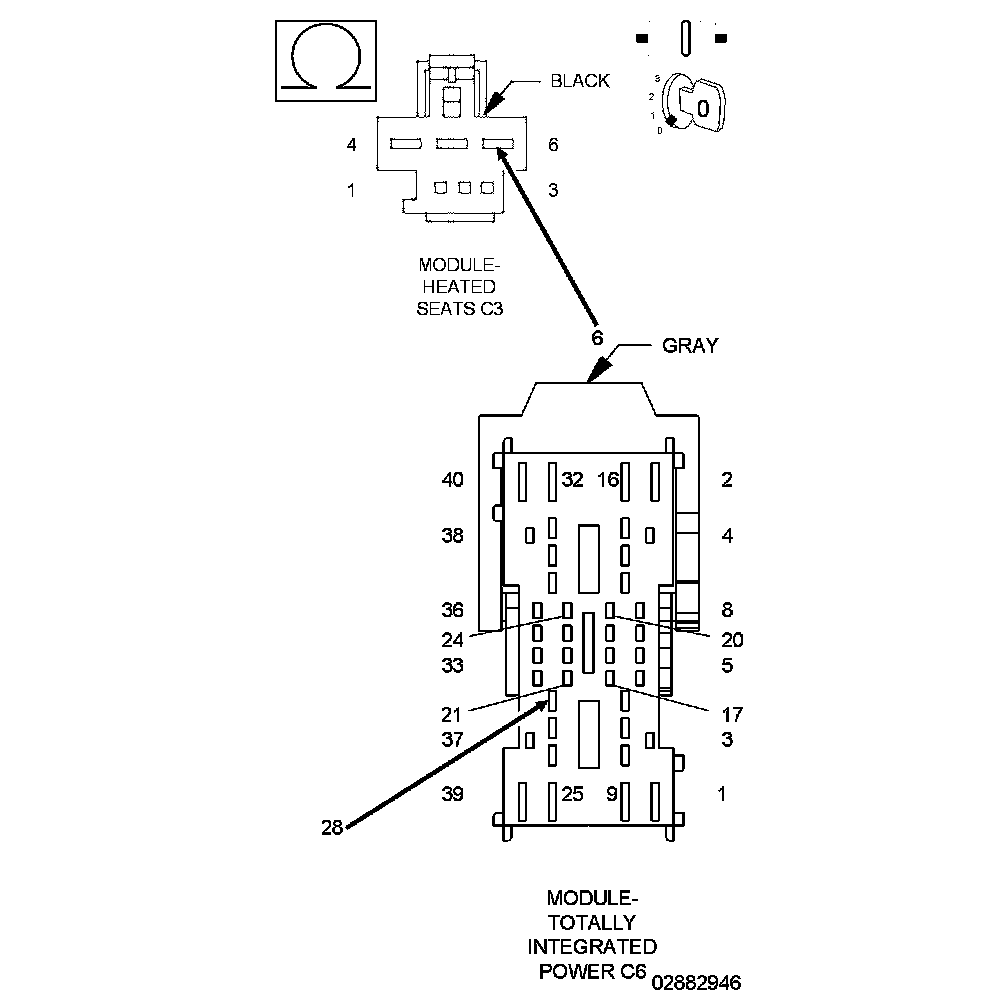

7. CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT FOR AN OPEN BETWEEN TIPM AND HSM




1. Disconnect the HSM C3 harness connector.

NOTE: Check connectors. Clean and repair as necessary.

2. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between the TIPM C6 harness connector and the HSM C3 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Replace the Heated Seat Module (HSM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (F931) Fused Ignition Run Control Output circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
