B009A
B009A-49-LEFT SIDE SATELLITE SENSOR 4 - INTERNAL ELECTRONIC FAILURE

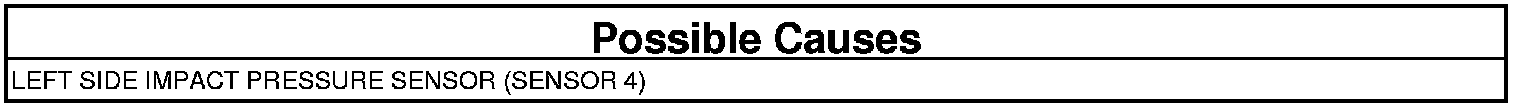

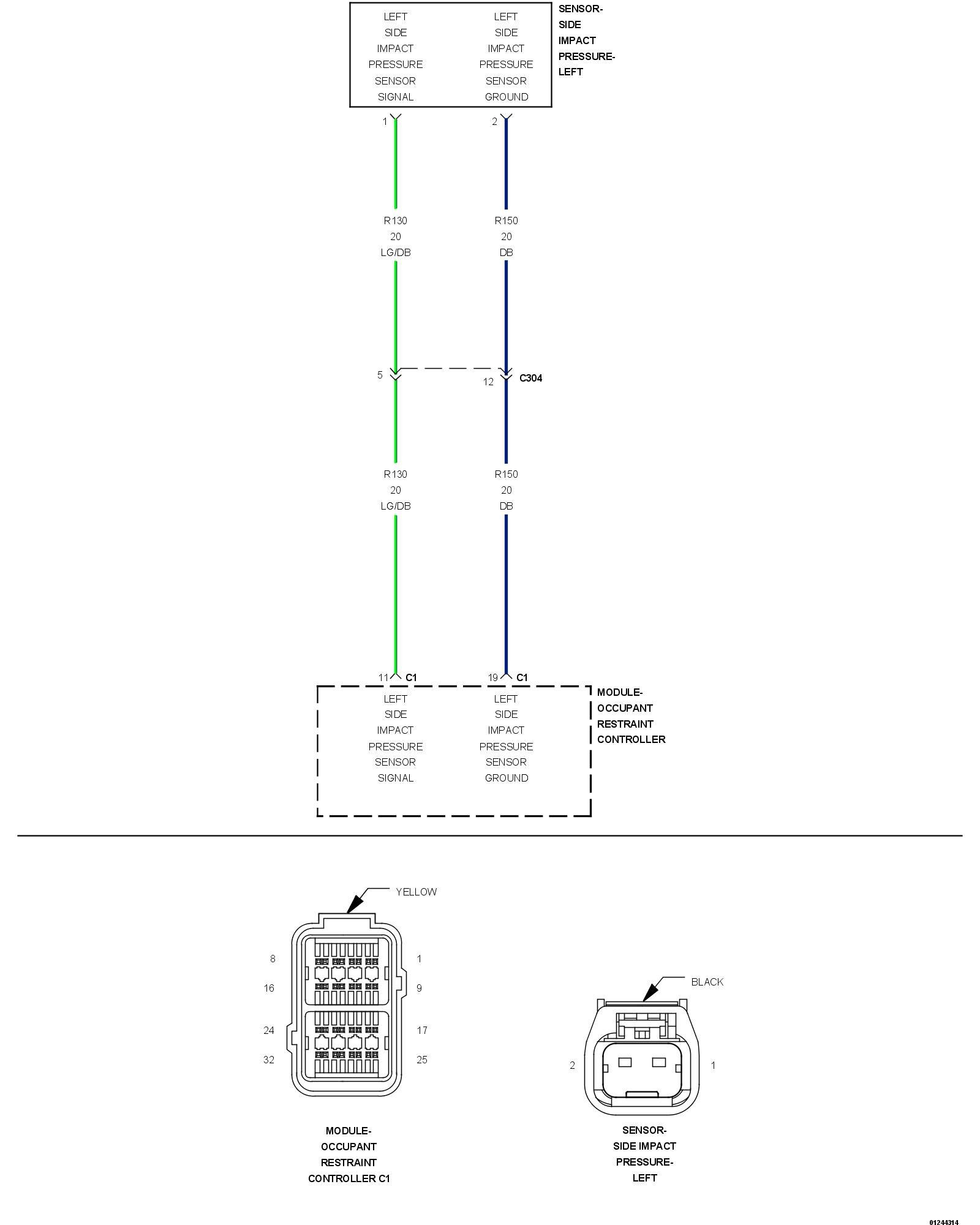

For a complete wiring diagram, refer to the Wiring Information.
Theory of Operation
The location of this left side impact sensor (pressure sensor) 4 is located in the Left Front Door. Impact Sensor - Description. Impact sensors perform internal self-tests and communicate the sensors status using power supplied by the Occupant Restraint Controller (ORC). The sensor communicates this internal failure message using the sensor signal circuit. If the scan tool shows this DC has a Stored history of setting then the left side impact sensor is to be replaced.
- When Monitored:
Impact sensors perform the self-test for internal circuitry at power up during the initialization process, and continuously through the ignition cycle every 10 ms.
- Set Condition:
This DC sets when the ORC receives notification of a self-test failure within the impact sensor. Once set, this DTC is latched for the entire ignition cycle.
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.
NOTE: If the scan tool shows this DTC has a Stored history of setting then the left side impact sensor is to be replaced.
VERIFY ACTIVE DTC
NOTE: Make sure the battery is fully charged.
1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.
Does the scan tool display active B009A-49-LEFT SIDE SATELLITE SENSOR 4 - INTERNAL ELECTRONIC FAILURE DTC or shows a setting history in stored?
Yes
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Left Side Impact Pressure Sensor. Side
- Perform the RESTRAINT SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No (Did not set a active or stored DTC B009A-49-LEFT SIDE SATELLITE SENSOR 4- INTERNAL ELECTRONIC FAILURE).
- Perform the RESTRAINT SYSTEM INTERMITTENT TEST. Restraints System Intermittent Condition Test
