Windshield - Removal

REMOVAL










1. Remove wiper arms. Wiper Arm - Removal
2. Remove headliner. Headliner - Removal
3. Remove rear view mirror. Interior Rearview Mirror - Removal

CAUTION: Cover instrument panel and vents to protect against splinters and damage.

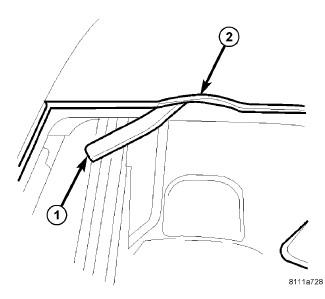

4. Using a trim stick C-4755 or equivalent, remove windshield seal.










CAUTION: Fabricate a protection guard from 2 mm sheet plastic or equivalent to protect rubber instrument panel from damage.

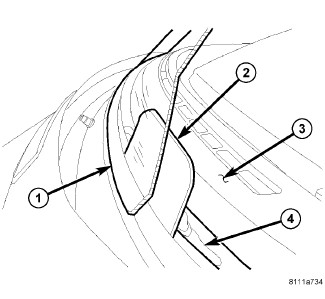

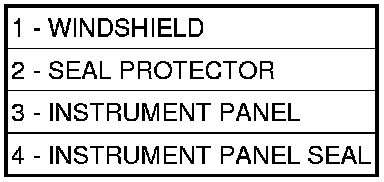

5. Place protection guard between windshield and instrument panel seal.

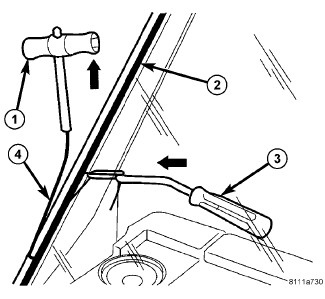

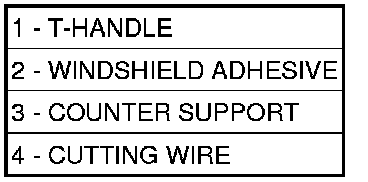

6. Using a windshield cut-out wire separate the adhesive.

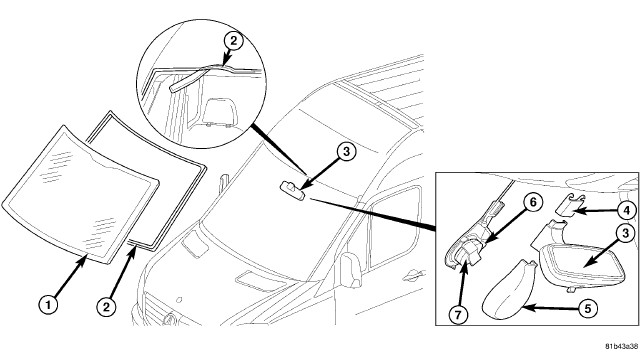

7. Carefully remove windshield (1).
