Rear A/C Pressure Transducer - Removal

REMOVAL

WARNING: Review safety precautions and warnings before performing this procedure Warning and Caution . Failure to follow these instructions may result in serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the rear refrigerant system Refrigerant System Recovery.
3. Remove the rear condenser cover from the top of the vehicle.

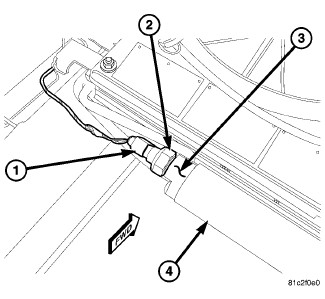

4. Disconnect the wire harness connector (1) from the rear A/C pressure transducer (2) located on the rear A/C liquid line (3) at the left end of the A/C receiver drier (4)
5. Remove the rear A/C pressure transducer from the rear A/C liquid line and remove and discard the O-ring seal.
