Front Center Seat Belt Retractor Tensioner (LU Seat DFN) 2 Way

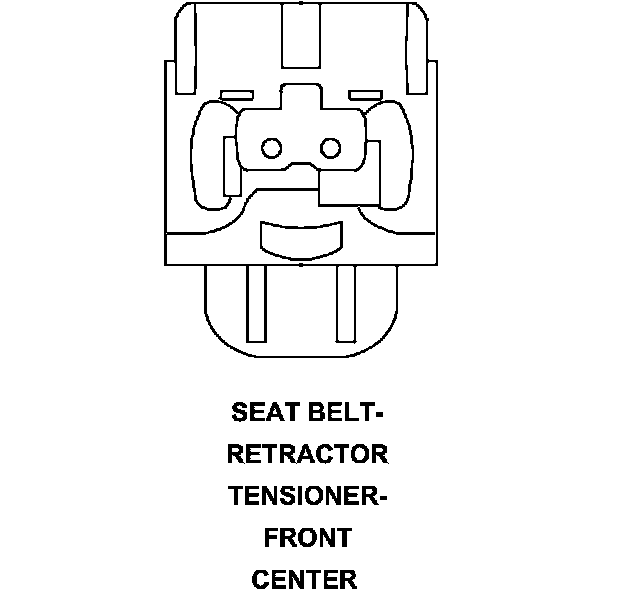

Connector - (LU SITZ DFN) 2 WAY

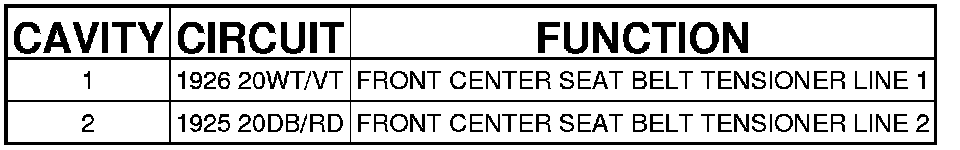

SEAT BELT-RETRACTOR TENSIONER-FRONT CENTER - (LU SITZ DFN) 2 WAY
