Driver Seat Belt Retractor Tensioner (HLS) 2 Way

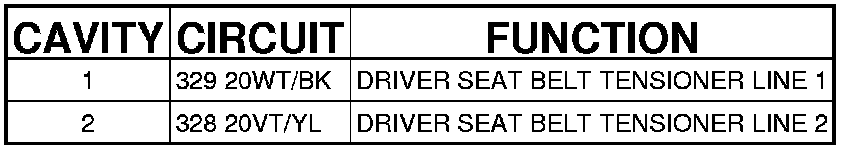

Connector - (HLS) 2 WAY

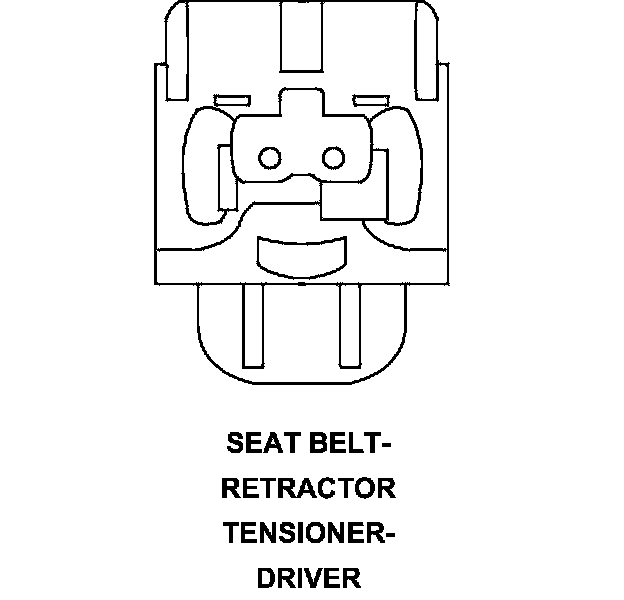

SEAT BELT-RETRACTOR TENSIONER-DRIVER - (HLS) 2 WAY
