Cooling Fan Serpentine Belt

3.0L COOLING FAN SERPENTINE BELT

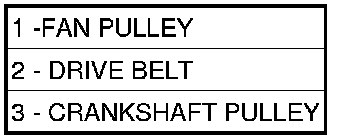

1. Remove the radiator fan and shroud assembly.Cooling Fan - Removal
2. While using a suitable tool, rotate the crankshaft pulley clockwise (3).
3. While rotating the crankshaft, walk the fan drive belt (2) off the crankshaft pulley (3) and the fan pulley (1).
