Ambient Temperature Sensor - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Raise the vehicle on a hoist, Service and Repair.

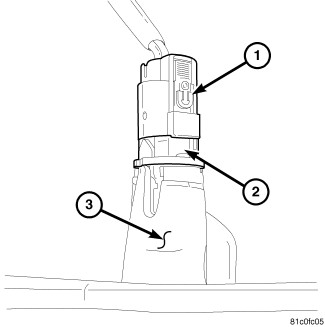

3. Disconnect the wire harness connector (1) from the ambient temperature sensor (2).
4. Remove the ambient temperature sensor (2) from the vehicle by disengaging the sensor from the receiver assembly (3).
