Front A/C Receiver Drier - Removal

REMOVAL

WARNING: Review safety precautions and warnings before performing this procedure Warning and Caution . Failure to follow these instructions may result in serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the refrigerant system Refrigerant System Recovery.
3. Remove the grille Grille - Removal.
4. Remove the A/C condenser fan assembly from the front of the A/C condenser Front A/C Condenser Fan - Removal.

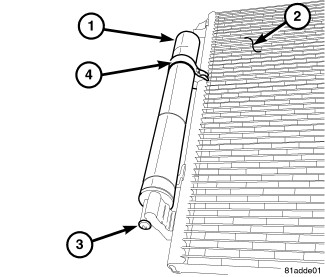

5. Remove the bolt (3) that secures the A/C receiver/drier (1) to the right end of the A/C condenser (2).
6. Disengage the receiver/drier mounting bracket (4) from the A/C condenser.
7. Disconnect the A/C receiver/drier from the A/C condenser and remove and discard the O-ring seals.
8. If required, remove the receiver/drier mounting bracket from the A/C receiver/drier.
9. Install plugs in, or tape over the opened receiver/drier and condenser ports.
