Timing Chain Tensioning Rail

TIMING CHAIN TENSIONING RAIL










1. Disconnect negative battery cable.
2. Remove cylinder head Cylinder Head - Removal.
3. Remove timing chain cover Engine Timing Cover(s) - Removal - REMOVAL).

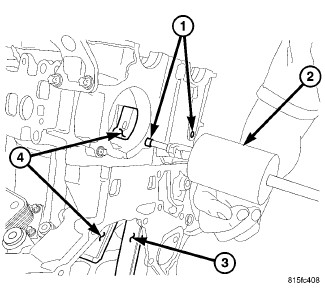

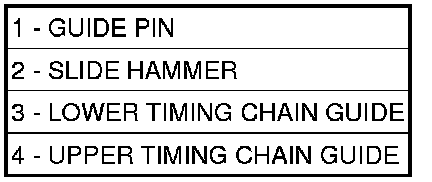

4. Remove the timing chain guide pin.
5. Remove the timing chain retaining bolt.
6. Remove the timing chain tensioner.
