Removal

Engine, 3.OL Turbo Diesel/Manifolds/LINKAGE, Swirl Valve/Removal

REMOVAL


1. Disconnect the negative battery cable.
2. Remove the intake manifold Intake Manifold






3. Loosen the EGR cooler bolts to gain access to the swirl valve linkage clips.

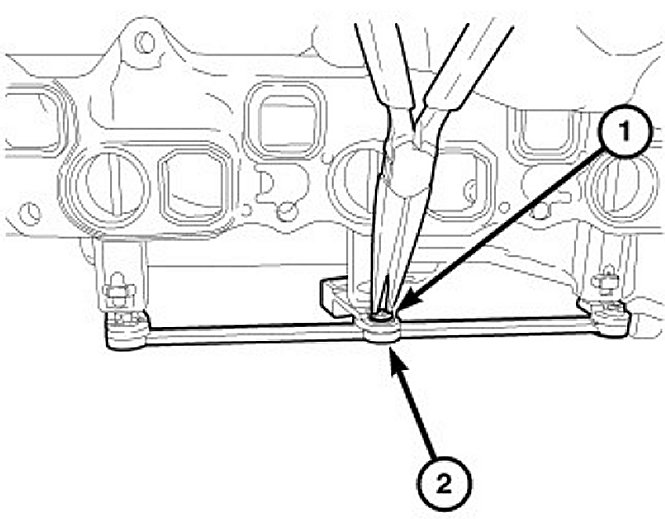

4. Remove the swirl valve linkage clips (2).
