Wind Deflector - Installation

INSTALLATION

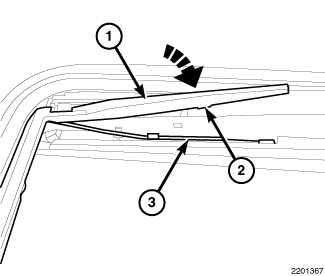

1. Position the wind deflector wires (2) into the holes of the closeout frame and rotate the wire forward and down.





2. Seat the wires (1) into the retaining clips (2) fully.





3. Position the deflector legs (1) down onto the support wires (3) and seat the clips (2) fully.
