Speaker - Removal

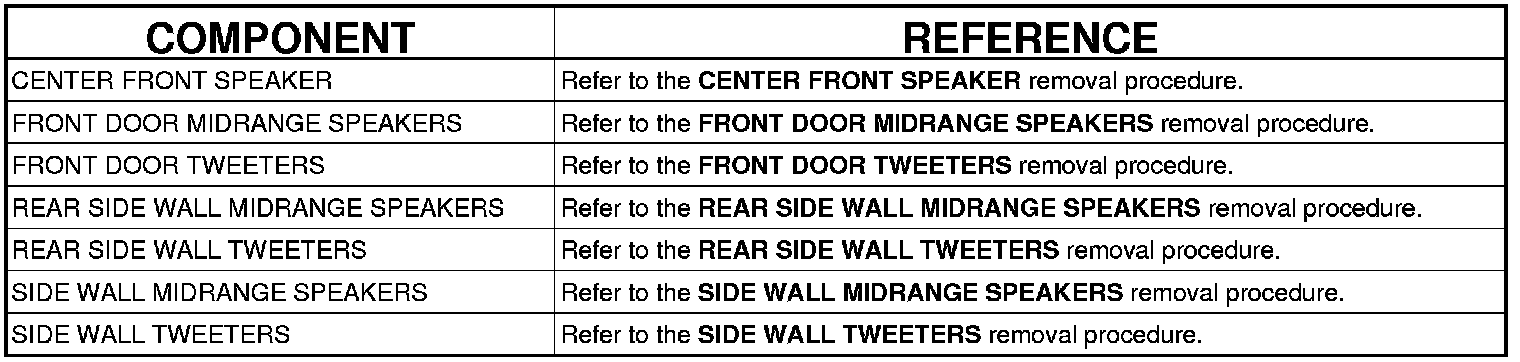

REMOVAL






CENTER FRONT SPEAKER

1. Disconnect and isolate the battery negative cable.
2. Remove the speaker cover.
3. Remove the mounting fasteners and disconnect the electrical connector.
4. Remove the speaker.

FRONT DOOR MIDRANGE SPEAKERS

1. Disconnect and isolate the battery negative cable.
2. Remove the door panel trim.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.

FRONT DOOR TWEETERS

1. Disconnect and isolate the battery negative cable.
2. Remove the door panel trim.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.

REAR SIDE WALL MIDRANGE SPEAKERS

1. Disconnect and isolate the battery negative cable.
2. Remove the quarter trim panel. Quarter Trim Panel - Removal.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.

REAR SIDE WALL TWEETERS

1. Disconnect and isolate the battery negative cable.
2. Remove the quarter trim panel. Quarter Trim Panel - Removal.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.

SIDE WALL MIDRANGE SPEAKERS

1. Disconnect and isolate the battery negative cable.
2. Remove the quarter trim panel. Quarter Trim Panel - Removal.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.

SIDE WALL TWEETERS

1. Disconnect and isolate the battery negative cable.
2. Remove the quarter trim panel. Quarter Trim Panel - Removal.
3. Remove the mounting fasteners and remove the speaker.
4. Disconnect the electrical connector.
