Left Door Tweeter Speaker (CLS) 2 Way
Left Door Tweeter Speaker (CLS) 2 Way

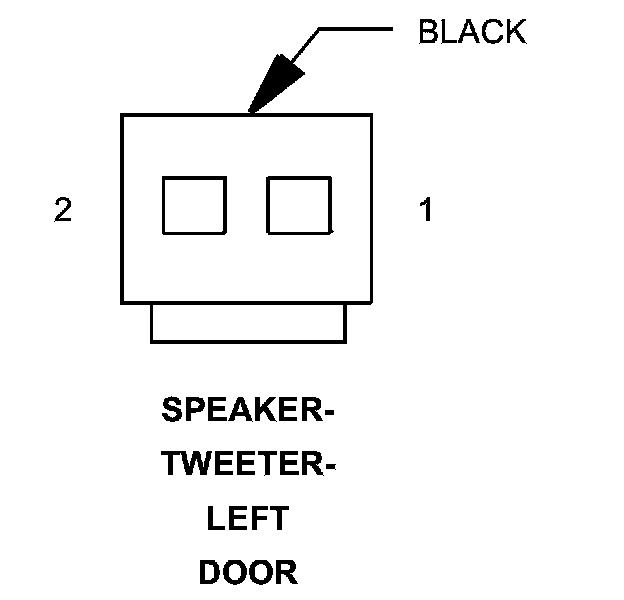

Connector - (CLS) 2 WAY

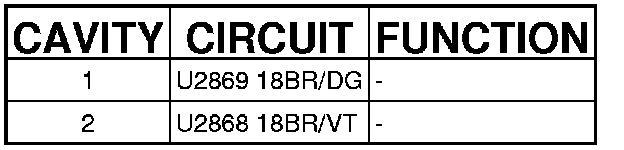

SPEAKER-TWEETER-LEFT DOOR - (CLS) 2 WAY
