Radio C2 (Sound 20) (CLS) 8 Way
Radio C2 (Sound 20) (CLS) 8 Way

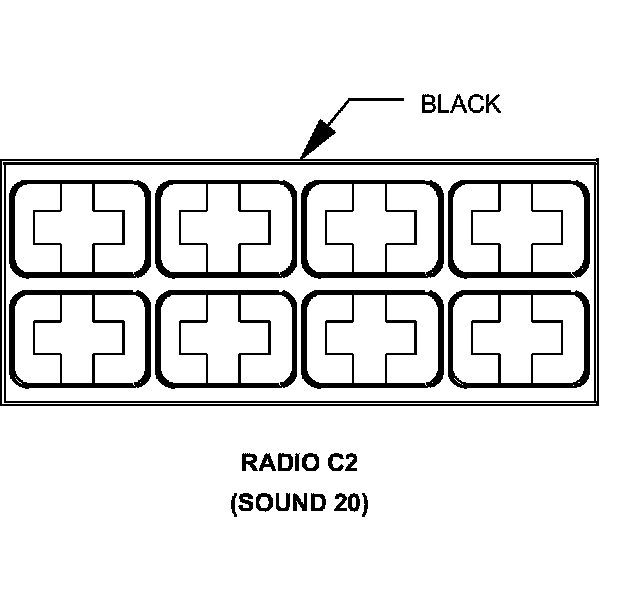

Connector C2 (SOUND 20) - (CLS) 8 WAY
RADIO (SOUND 20) - (CLS) 8 WAY
