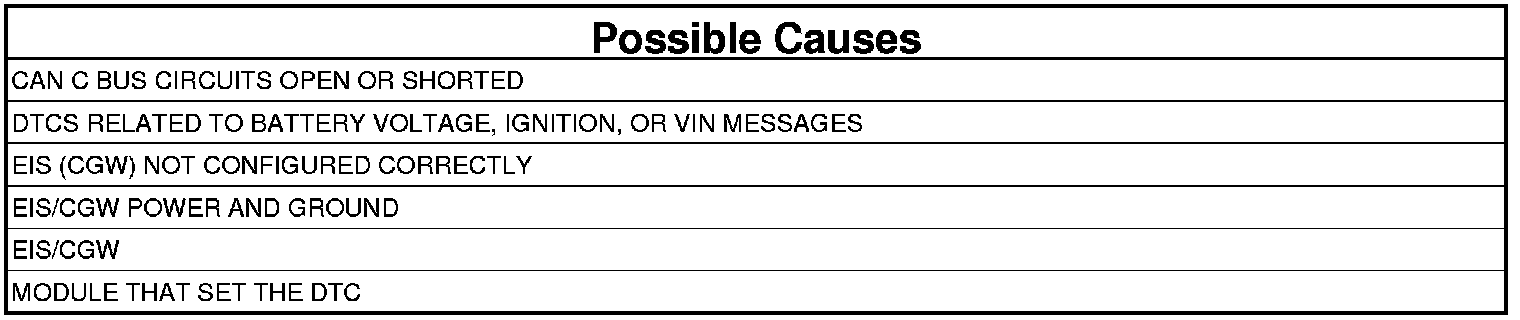

9345- LOST COMMUNICATION WITH EIS/CGW

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

Battery voltage between 10 and 16 Volts.

Ignition Off Draw (IOD) fuse installed.

EIS (CGW) is configured correctly.

- Set Condition:
Bus messages not received from the EIS/CGW for approximately two to five seconds.





VERIFY THE DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE

NOTE: Make sure the IOD fuse is installed and battery voltage is between 10 and 16 Volts before proceeding.

1. Using the scan tool, read active DTCs.

Is this DTC active?

Yes

- Perform the appropriate diagnostic procedure.Testing and Inspection

No

- Perform the STORED LOST COMMUNICATION DTCS diagnostic procedure.Stored Lost Communication DTCs
