Steering Gear: Description and Operation

DESCRIPTION

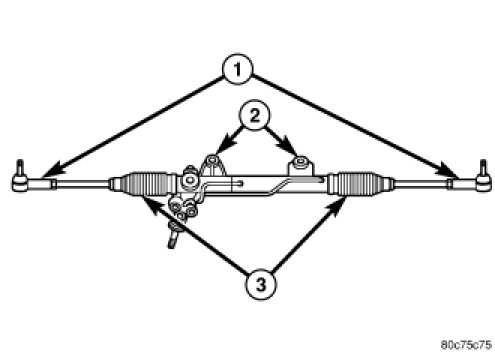

A rack and pinion steering gear is made up of two main components, the pinon shaft and the rack. The gear cannot be adjusted or internally serviced. If a malfunction or a fluid leak occurs, the gear must be replaced as an assembly. Outer tie rod ends (1) are serviceable.
