Removal

REMOVAL

WARNING: Review safety precautions and warnings in this group before performing this procedure Warning and Caution. Failure to follow the warnings and cautions may result in serious or fatal injury.

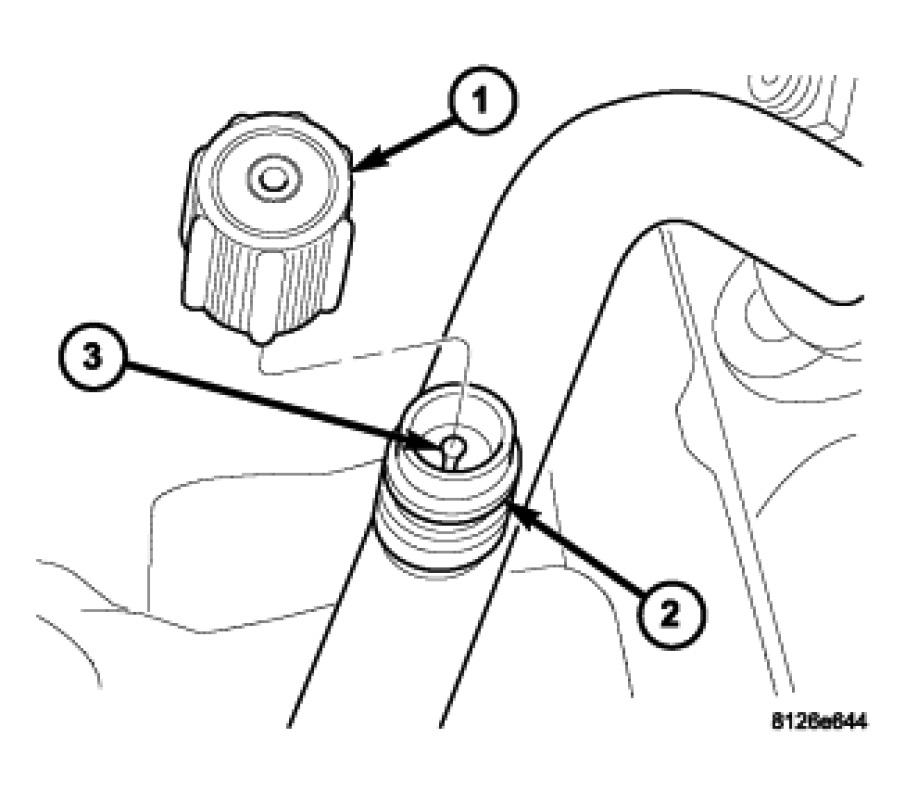

NOTE: Typical A/C system service port and refrigerant line shown.

1. Remove the protective cap (1) from the service port (2).
2. Recover the refrigerant from the refrigerant system Refrigerant System Recovery.
3. Using a Schrader-type valve core tool, remove the valve core (3) from the service port.
4. Install a plug in or tape over the opened service port(s).
