Rear Cable - Single Rear Wheel (SRW)

REAR CABLE - SINGLE REAR WHEEL (SRW)

1. Raise and support the vehicle.
2. Remove the rear tires.
3. Remove the disc brake caliper adapter Disc Brake Caliper Adapter - Removal.




4. Remove the rotor set screw (1).
5. Remove the rotor (3).




6. Lock out the brake cable Adjustments.

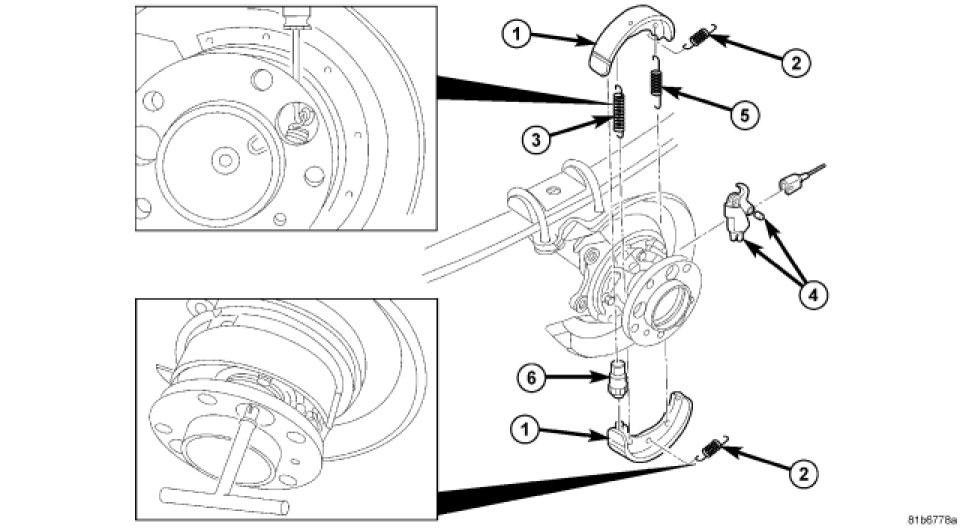

7. Remove the park brake shoes (1) Single Rear Wheel (SRW) Dual Rear Wheel (DRW).
8. Remove the park brake cables from the lever (4).
9. Remove all the tie straps from the brake cable.
10. Remove the park brake cable from the vehicle.
