Front Brake Hose

FRONT BRAKE HOSE

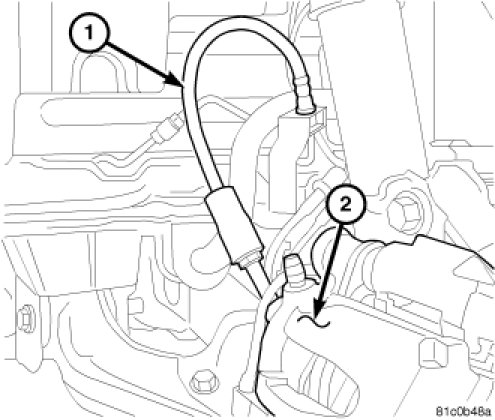

1. Install the brake hose (1) to the front caliper (2). Tighten to 14 Nm (10 ft.lbs).

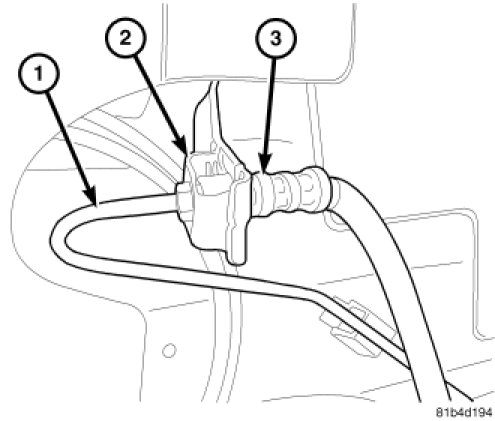

2. Install the brake hose (3) to the brake tube (1) and reclip (2). Tighten to 14 Nm (10 ft.lbs).
3. Install the front tire.
4. Lower the vehicle.
5. Bleed the brake system Brake Bleeding.
