Front - Dual Rear Wheel (DRW)

FRONT BRAKE ROTOR - DUAL REAR WHEEL (DRW)





1. Raise and support the vehicle.
2. Remove the front wheels.
3. Remove the caliper (4) Disc Brake Caliper - Removal.
4. Remove the brake pads Brake Pads - Removal.
5. Remove the caliper adapter Disc Brake Caliper Adapter - Removal.

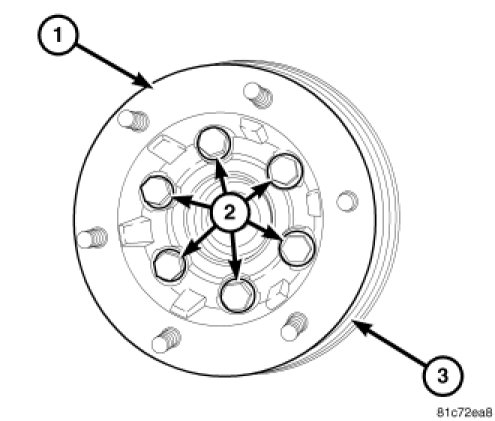

6. Remove the bolts (2) for the wheel flange ring (1).
7. Remove the disc brake rotor (3).
