Rear

REAR

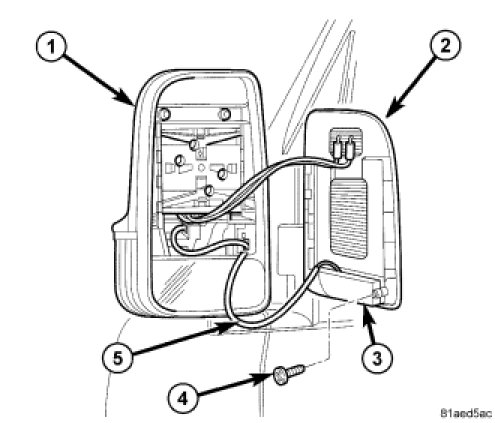

1. Position the rear park assist display (3) to the back of the upper mirror lens (2).
2. Install and tighten the two screws (4) that secure the display to the back of the mirror lens. Tighten the screws securely.
3. Engage the display pigtail wire (5) and connector within the body of the right or left outside rear view mirror unit (1).
4. Reinstall the mirror lens to the mirror unit. Outside Rearview Mirror - Installation Outside Rearview Mirror Glass - Installation.
5. Reinstall the mirror unit to the door panel. Outside Rearview Mirror - Installation.
6. Reconnect the battery negative cable.
