No Can Communication With ABS

Test 1 - Test 4:

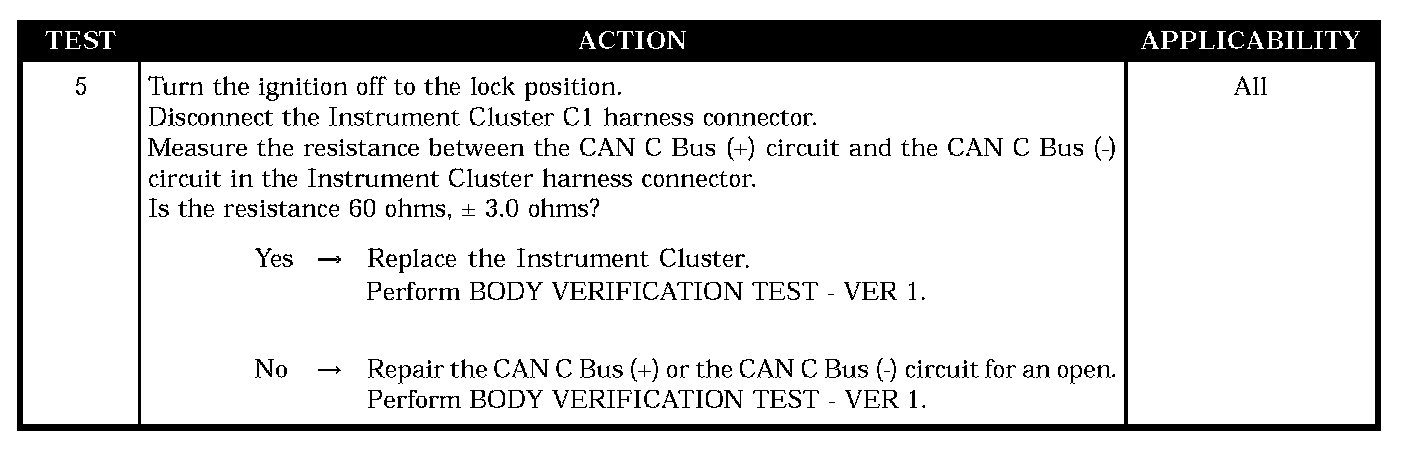

Test 5:

SYMPTOM
NO CAN COMMUNICATION WITH ABS

POSSIBLE CAUSES
- DTC present
- Open can circuits at instrument cluster
- Instrument cluster
- Check powers and grounds to the affected module
- Open can circuits at CAB
- Controller antilock brake
