ABS RF Sensor Messages
Symptom:ABS RF SENSOR MESSAGE
When Monitored and Set Condition
When Monitored: Valid ABS CAN messages received at least once and the CAN Bus circuit, ABS CAN Message Missing, ABS CAN Message Incorrect are not active
Set Condition: ABS signal "Wheel Speed Front Right" not valid or ABS has detected a sensor failure.
POSSIBLE CAUSES
- CAN BUS CIRCUIT DTC PRESENT
- ABS DTCS PRESENT

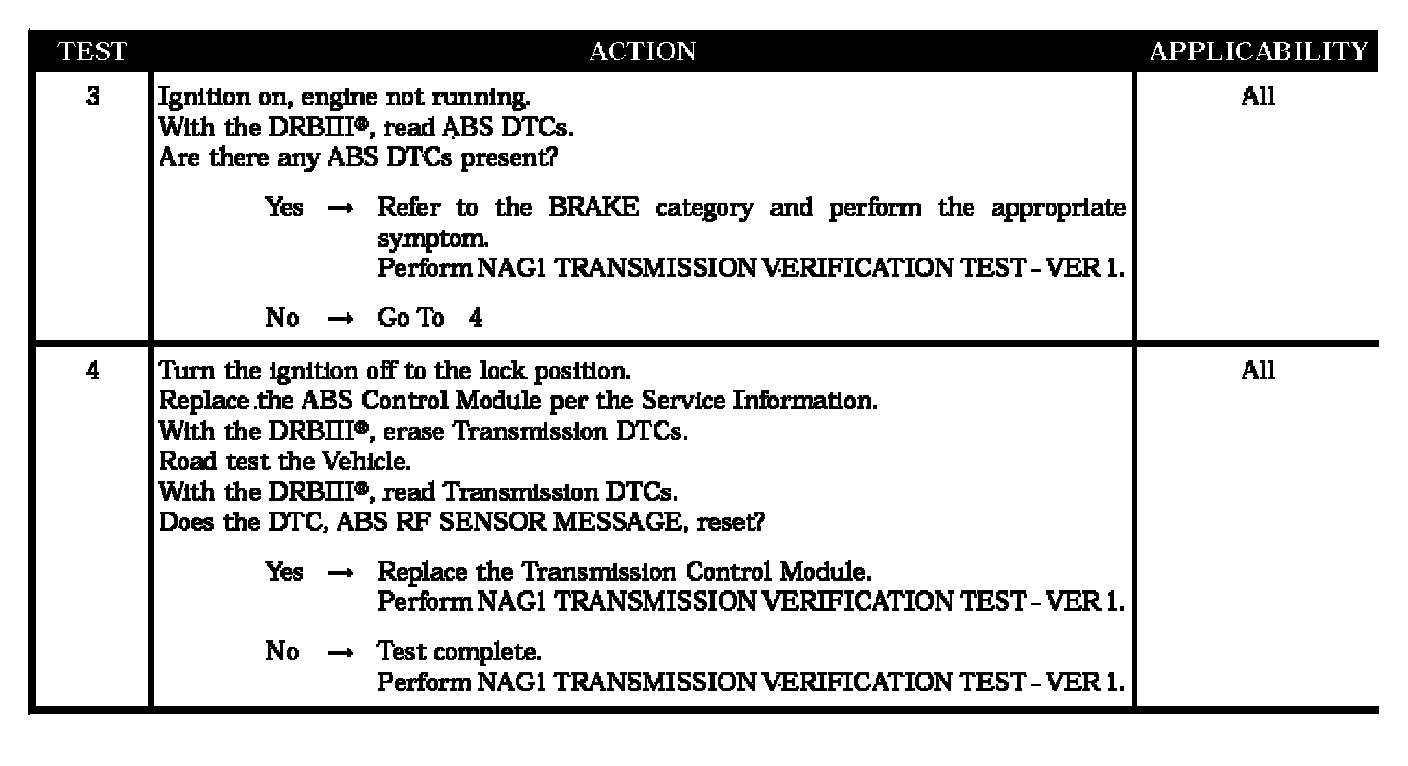

- ABS CONTROL MODULE - ABS RF SENSOR MESSAGE
- TCM - ABS RF SENSOR MESSAGE
