Steering Angle Sensor Greater Than 720 Degrees

Symptom:

STEERING ANGLE SENSOR GREATER THAN 720 DEGREES

POSSIBLE CAUSES
^ STEERING ANGLE SENSOR INTERMITTENT DTC
^ STEERING COMPONENT INSPECTION
^ STEERING ANGLE SENSOR

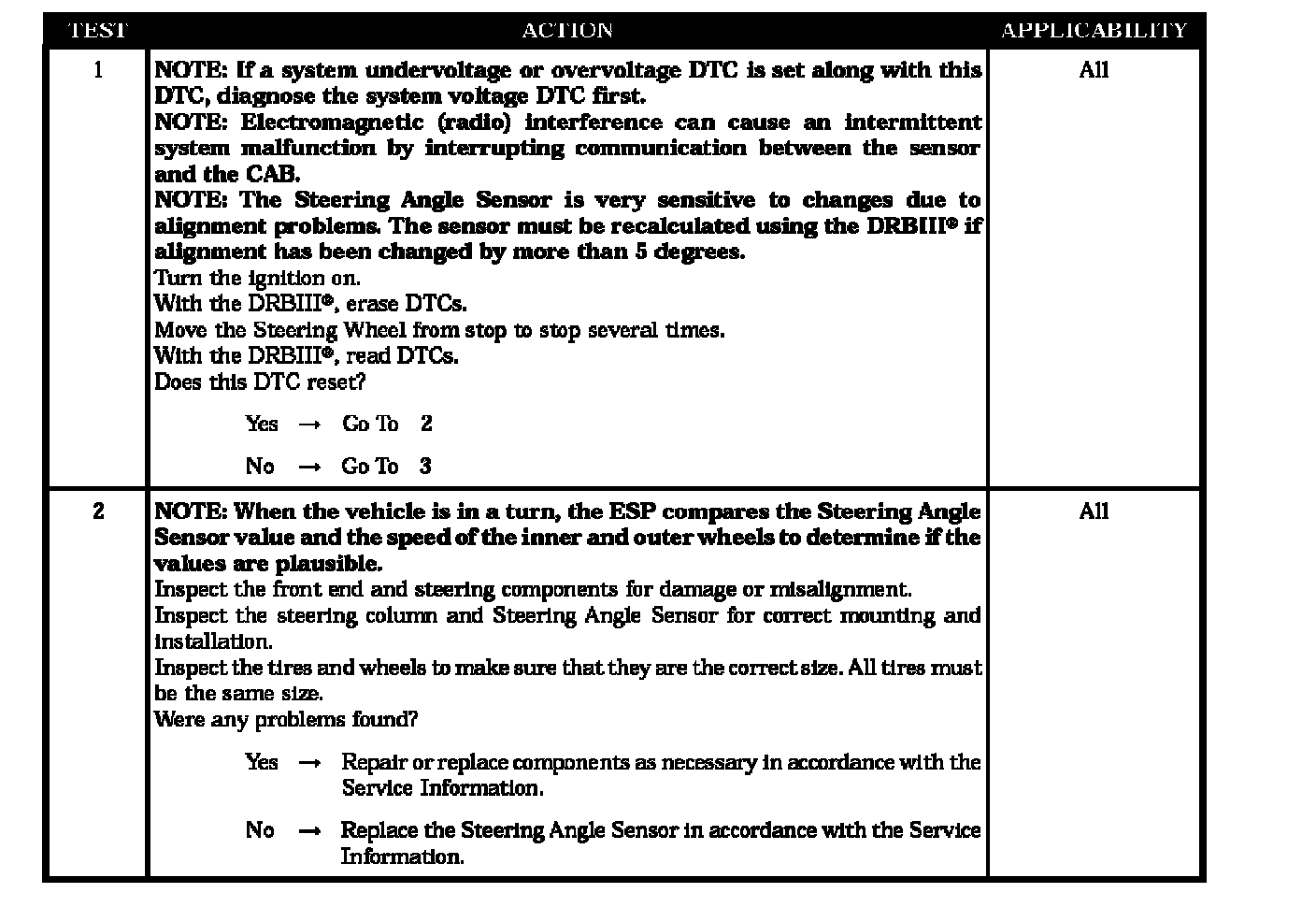

Test 1 - Test 2:




Test 3:
