Trailer Lighting Module: Diagrams

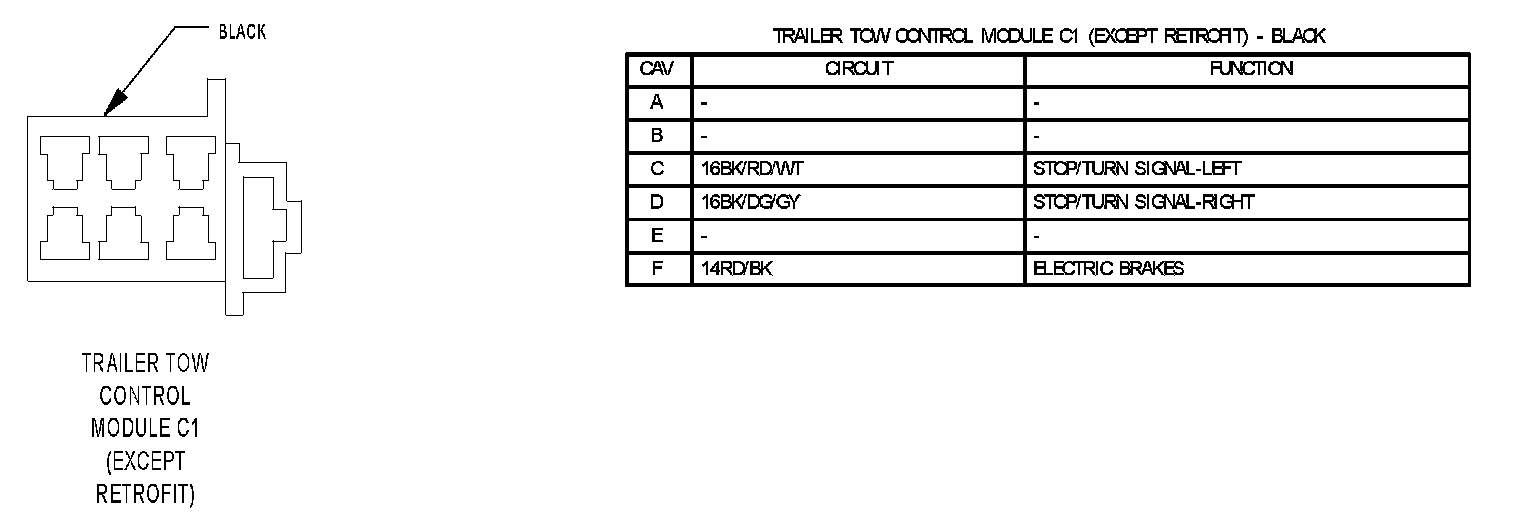

Trailer Tow Control Module C1 (Except Retrofit):

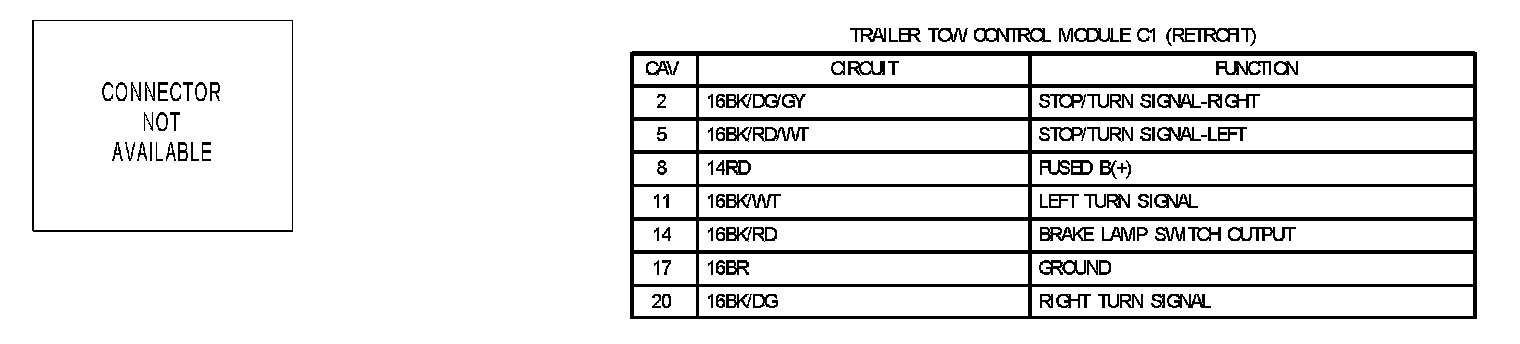

Trailer Tow Control Module C1 (Retrort):

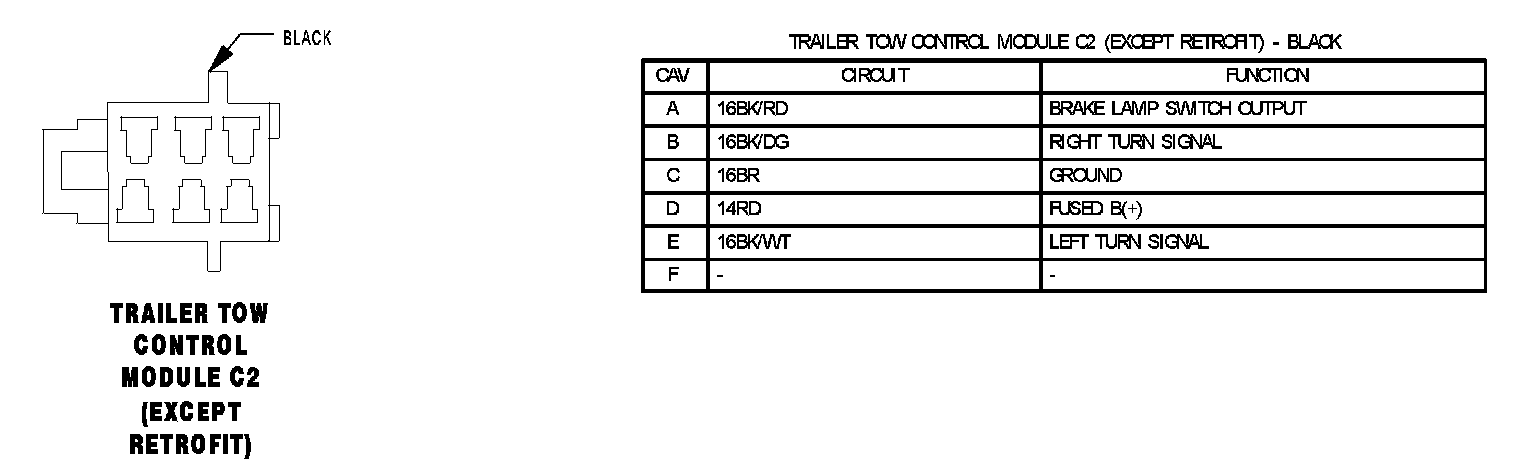

Trailer Tow Control Module C2 (Except Retrofit):
