Auxiliary Cabin Heater Control Module: Diagrams

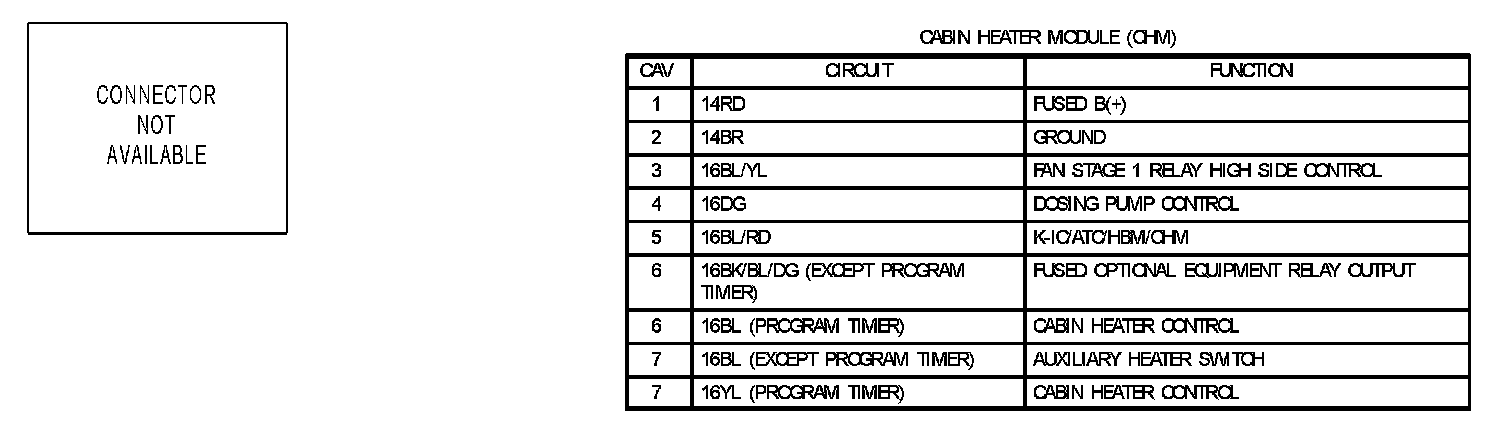

Cabin Heater Module (CHM):

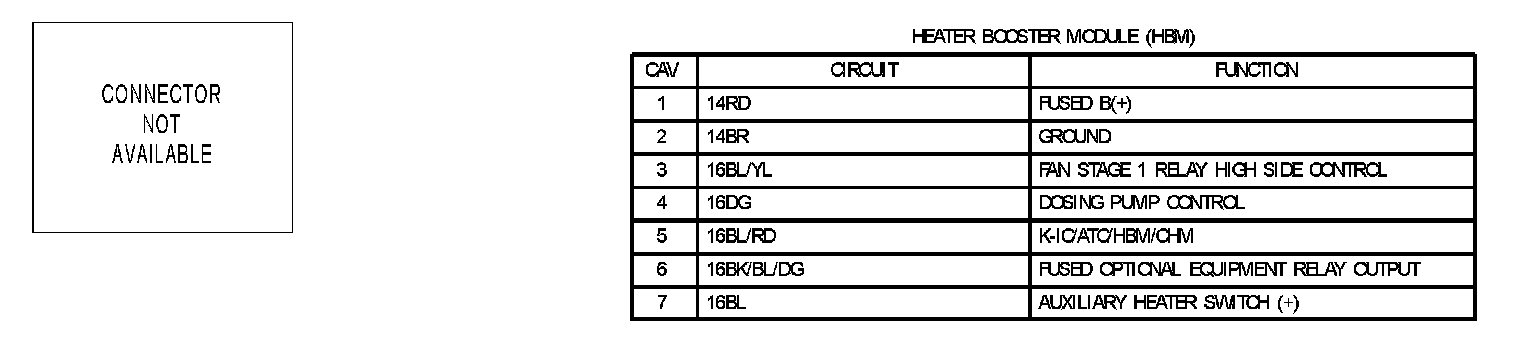

Heater Booster Module (HBM):
