Home >> Dodge or Ram Truck >> 2005 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Connector Views

Connector Views

Tail Lamp Assembly - Left:

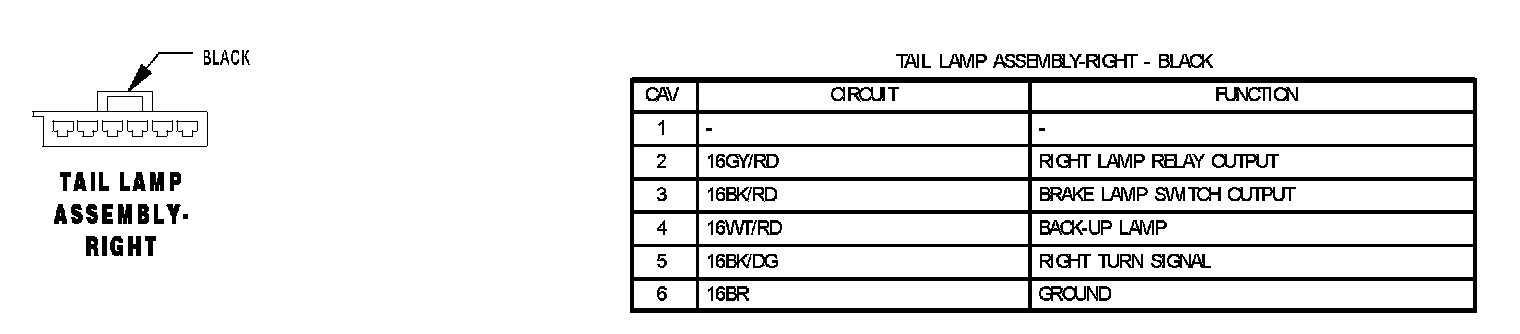

Tail Lamp Assembly - Right:
