TCC Solenoid Circuit

Symptom:
TCC SOLENOID CIRCUIT

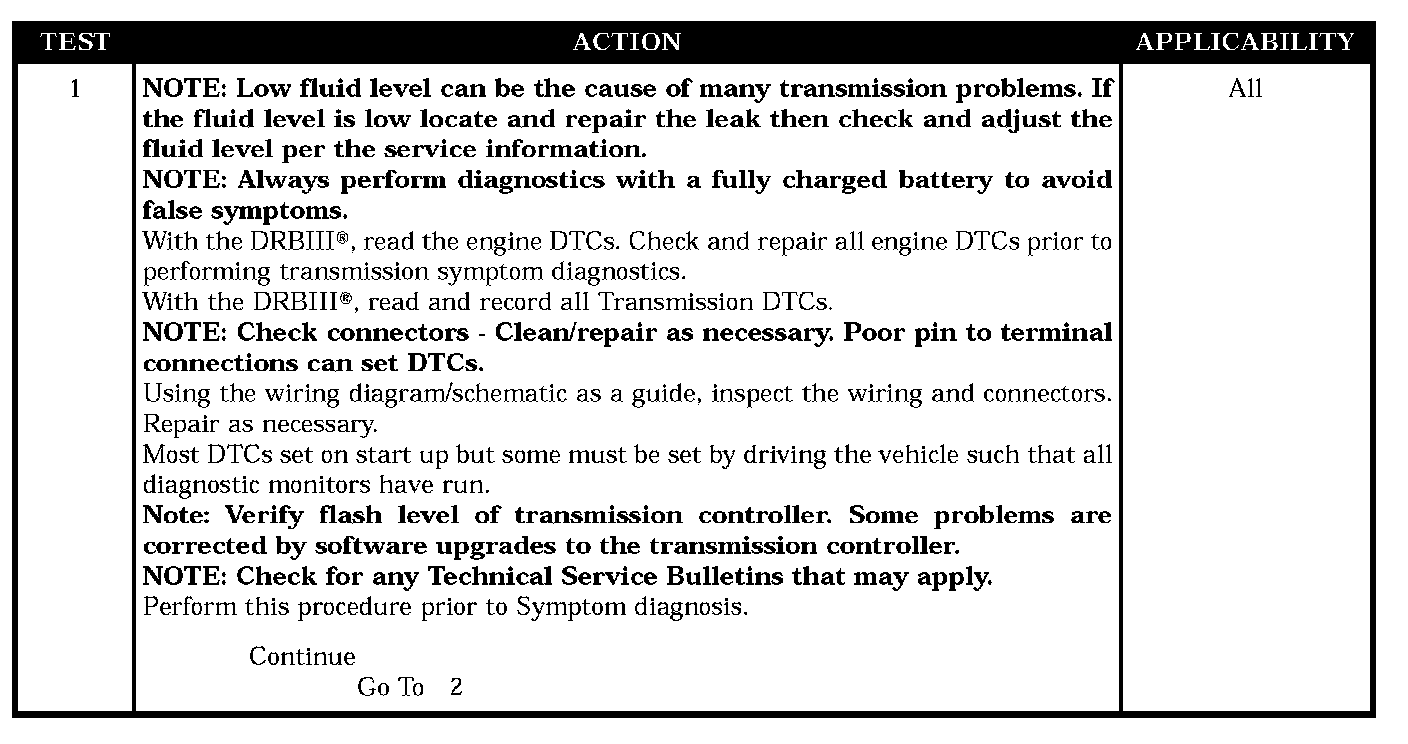

Test 1:

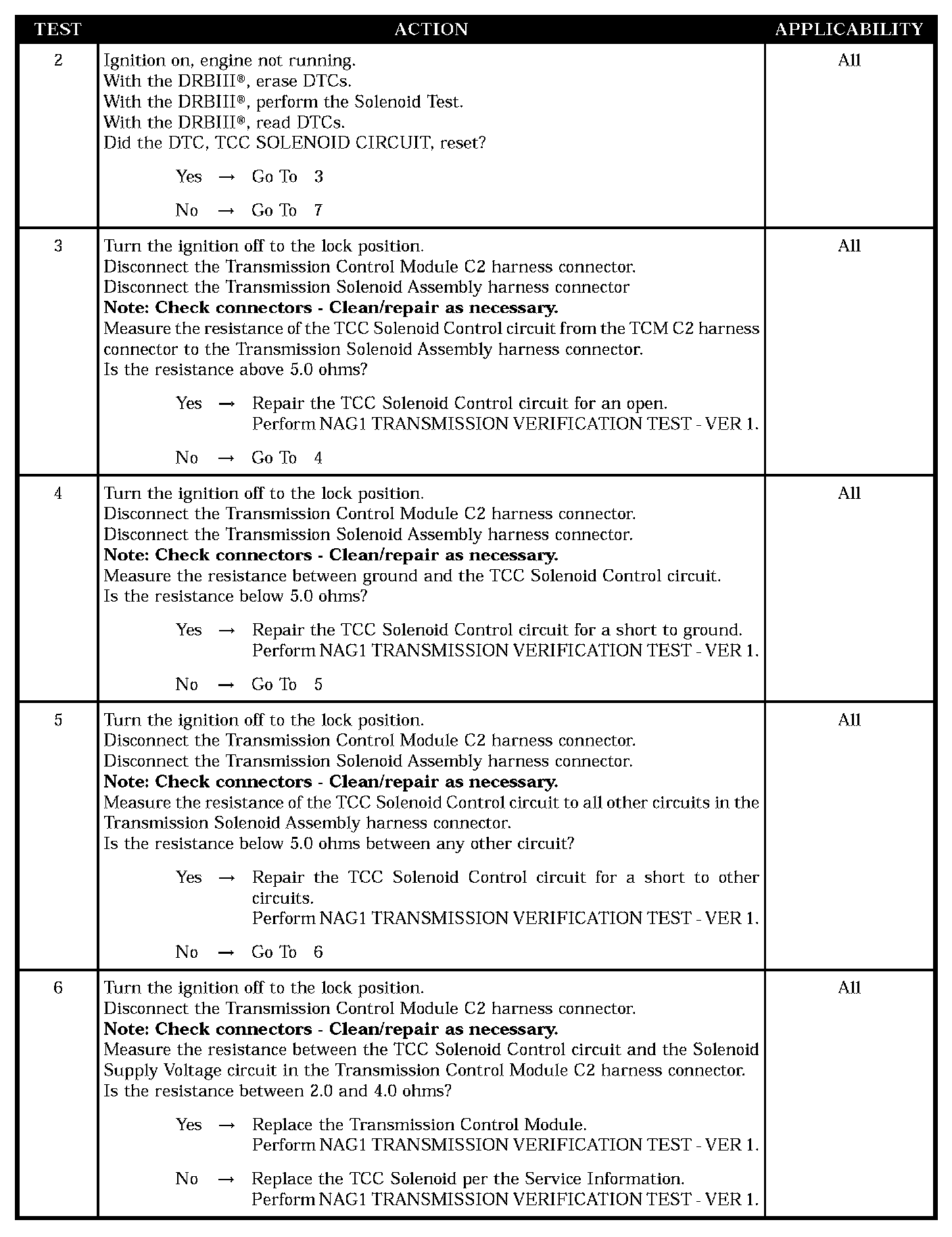

Test 2-6:

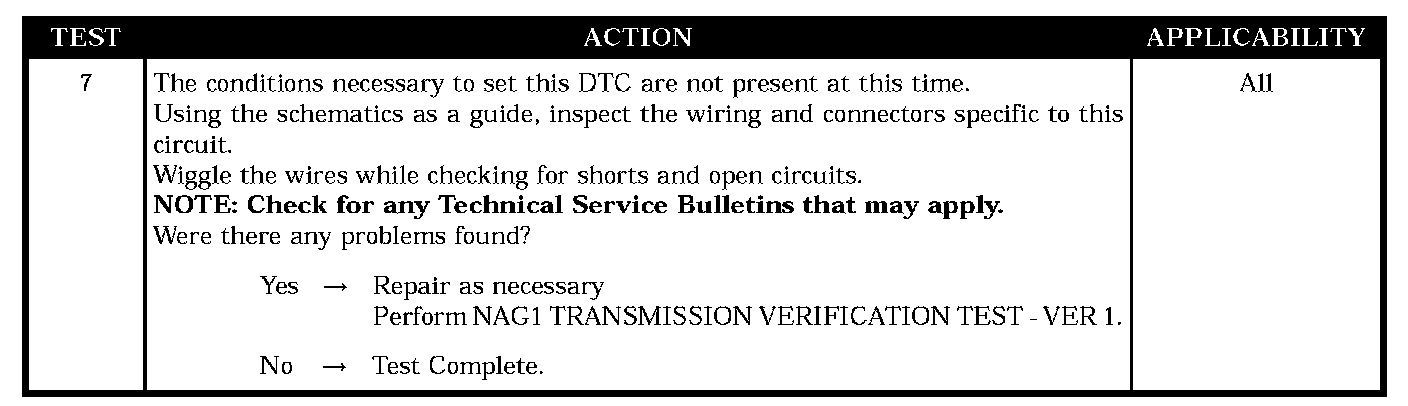

Test 7:

When Monitored:
Always monitored with system active at each ignition cycle.

Set Condition:
If the TCM detects a short to ground or battery on the solenoid control circuit, shorted solenoid, open solenoid, or an open or shorted solenoid control circuit driver in the TCM.

POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- TCC SOLENOID CONTROL CIRCUIT OPEN
- TCC SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- TCC SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS
- TCC SOLENOID I TCM - TCC SOLENOID CIRCUIT
