Dodge or Ram Truck
>>
2005
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Transmission Control System
>>
Transmission - NAG1
>>
Invalid Control Module Version
Invalid Control Module Version
Symptom:
INVALID CONTROL MODULE VERSION

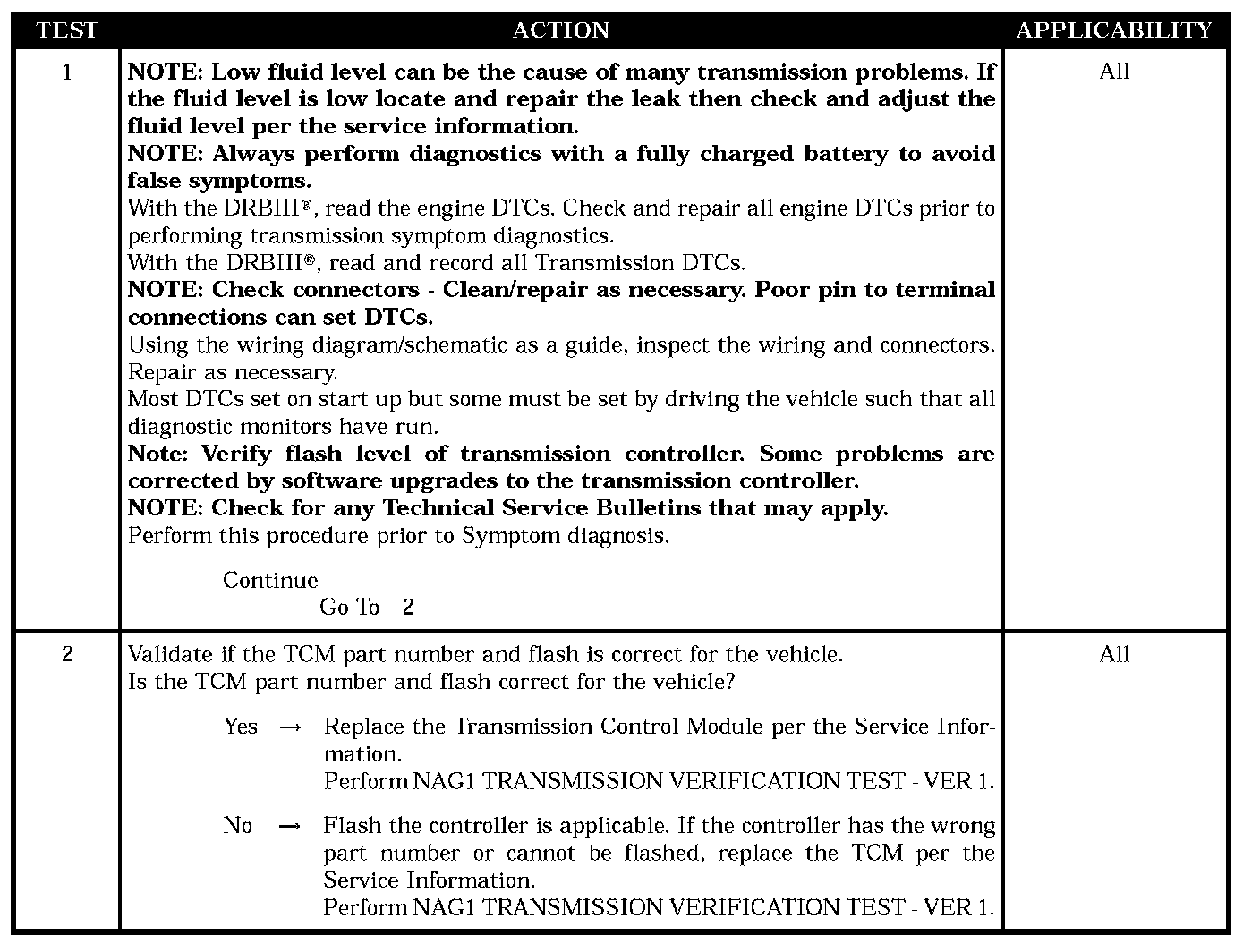

Test 1-2:
POSSIBLE CAUSES
-
TRANSMISSION CONTROL MODULE
-
INVALID CONTROL MODULE
