1-2/4-5 Solenoid Circuit Shorted to Ground

Symptom List:
1-2/4 5 SOLENOID CIRCUIT
1-2/4 5 SOLENOID CIRCUIT SHORT TO GROUND

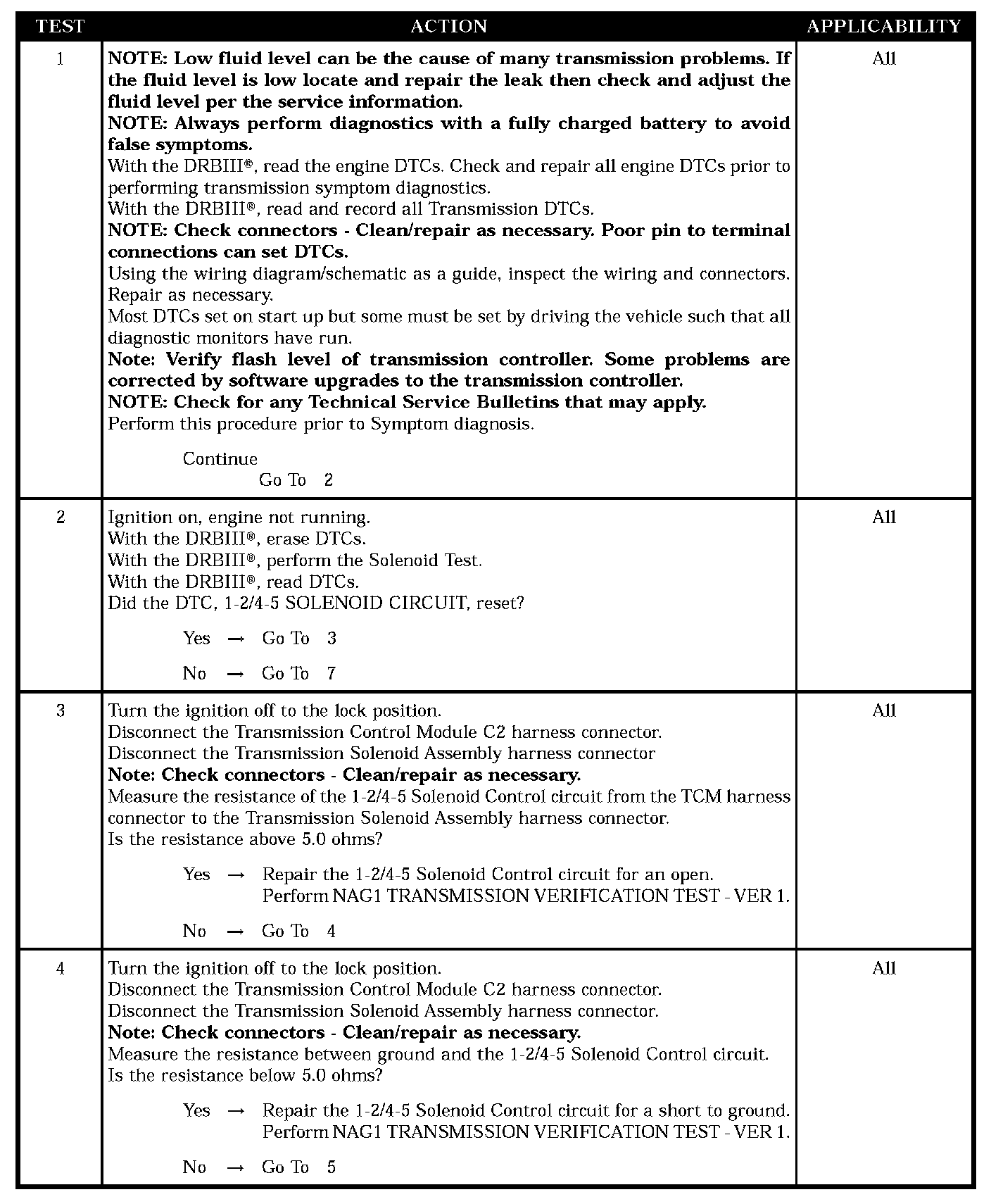

Test 1-4:

Test 5-7:

Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be 1 2/4 5 SOLENOID CIRCUIT.

1 2/4 5 SOLENOID CIRCUIT

When Monitored:
Always monitored with system active at each ignition cycle.

Set Condition:
If the TCM detects a short to ground or battery on the solenoid control circuit, shorted solenoid, open solenoid, or an open or shorted solenoid control circuit driver in the TCM.

1 2/4 5 SOLENOID CIRCUIT SHORT TO GROUND

When Monitored:
Always monitored with system active at each ignition cycle.

Set Condition:
If the TCM detects a short to ground or battery on the solenoid control circuit, shorted solenoid, open solenoid, or an open or shorted solenoid control circuit driver in the TCM.

- INTERMITTENT WIRING AND CONNECTORS
- 1-2/4-5 SOLENOID CONTROL CIRCUIT OPEN
- 1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- 1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS
- 1-2/4-5 SOLENOID I TCM - 1-2/4-5 SOLENOID CIRCUIT
