Repeater Lamp Bulb Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the small or large style repeater lamp unit from its mounting location, but do not disconnect it from the vehicle wire harness.

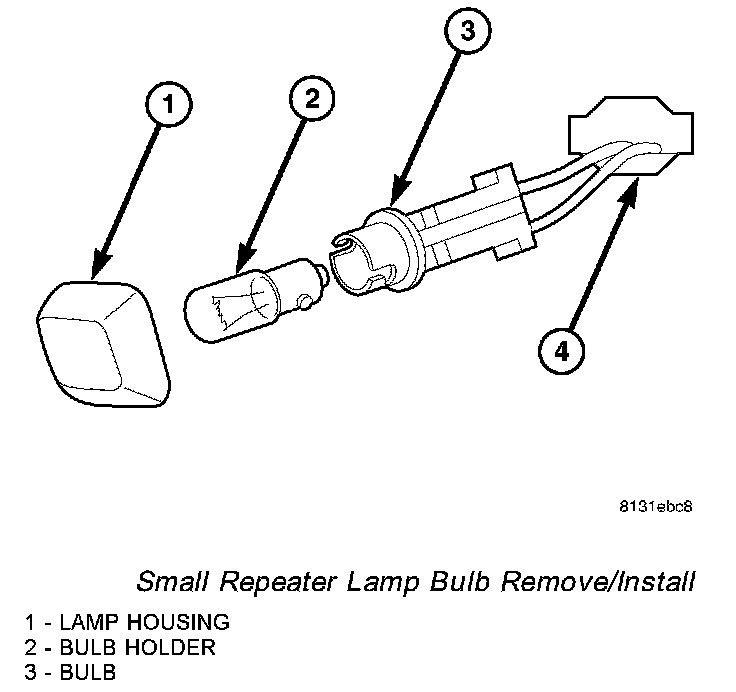

Small Repeater Lamp Bulb Remove/Install:

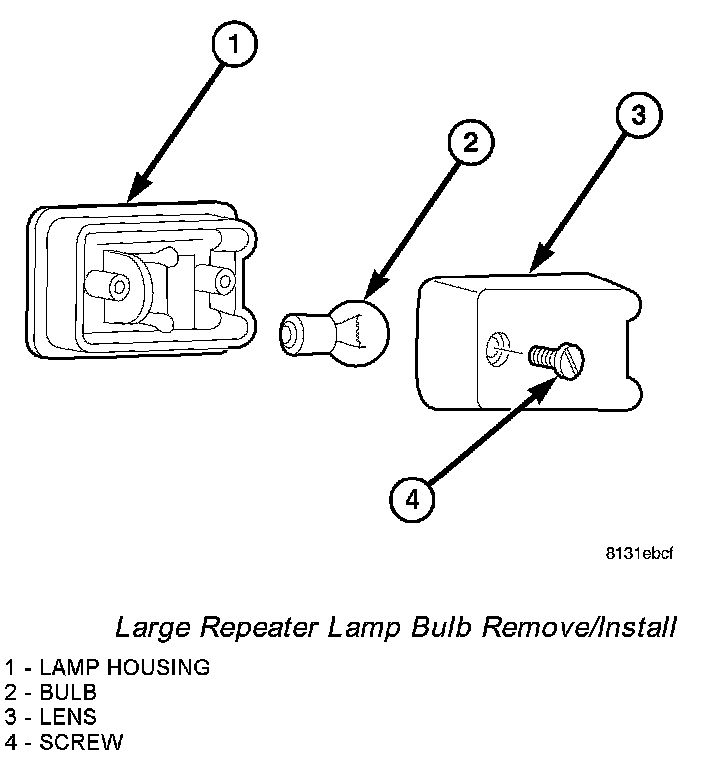

Large Repeater Lamp Bulb Remove/Install:

3. Remove the bulb holder from the lens (small type), or the lens from the lamp housing (large type).
4. Remove the repeater lamp bulb from the bulb holder.

INSTALLATION
1. Install the repeater lamp bulb into the bulb holder.
2. Reinstall the bulb holder into the lens (small type), or the lens onto the lamp housing (large type).
3. Reinstall the repeater lamp unit into its mounting location.
4. Reconnect the battery negative cable.
